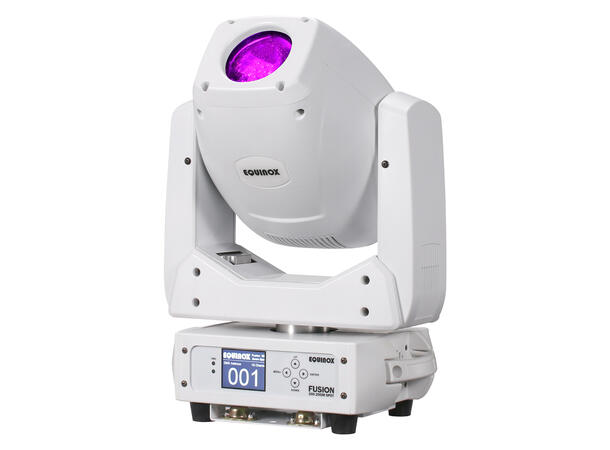

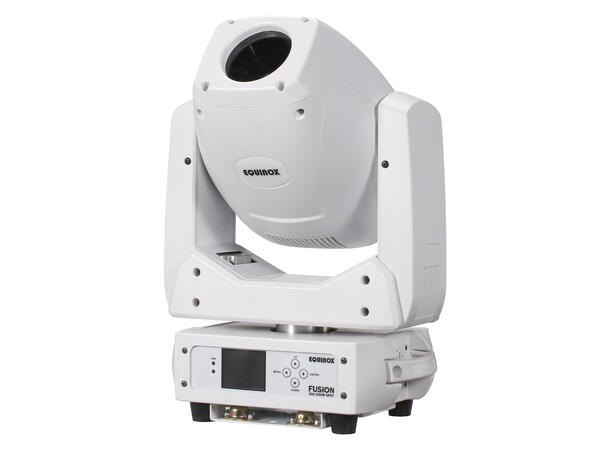

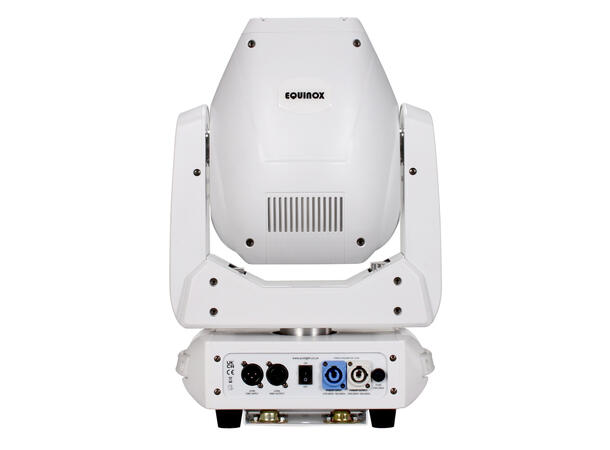

EQUINOX Fusion 200 Zoom spot

The Fusion 200 Zoom Spot features a single 200W LED and produces stunning light shows with a motorised zoom from 11°- 25°. Offering 7 colours plus open along with a rotating and static gobo wheel each containing 7 gobos plus open, the fixture is ideal for installation and performers alike. Two bi-directional prisms (6 facet circular and 5 facet linear) further bolster the fixtures comprehensive features and a motorised zoom keeps the gobos razor sharp over any distance. PowerCON, DMX in/out and a four button LCD display further enhance the fixture.

• 1 x 200W white LED (7500K)
• Adjustable beam angle: 11°-25°
• 11° - 27,900 Lux @ 2m, 25° - 9,855 Lux @ 2m
• 4.3kHz refresh rate
• Motorised zoom and focus
• 6 facet circular rotating prism plus 5 facet linear rotating prism
• Gobo wheel 1: 7 rotating, replaceable gobos + open
• Gobo wheel 2: 7 static gobos + open
• Colour wheel: 7 colours + open
• DMX channels: 2/14 or 18 selectable
• Auto, sound active, manual control and master/slave modes
• Forward facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0-100% dimming and variable strobe

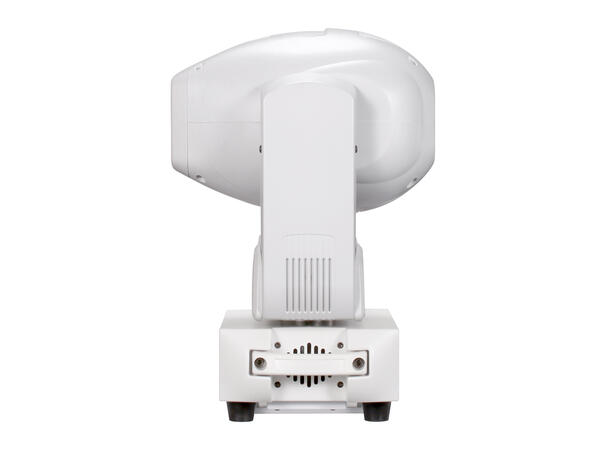

• Quick release omega clamps included
• Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
• 4 push button menu with 2.6” LCDdisplay

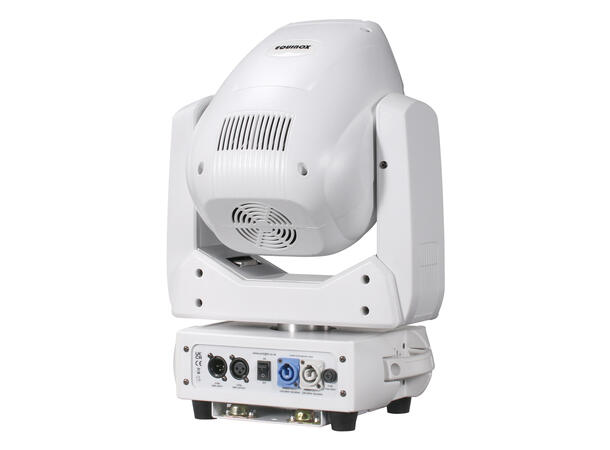

• PowerCON input/output
• 3-Pin XLR input/output
• Fan cooled
