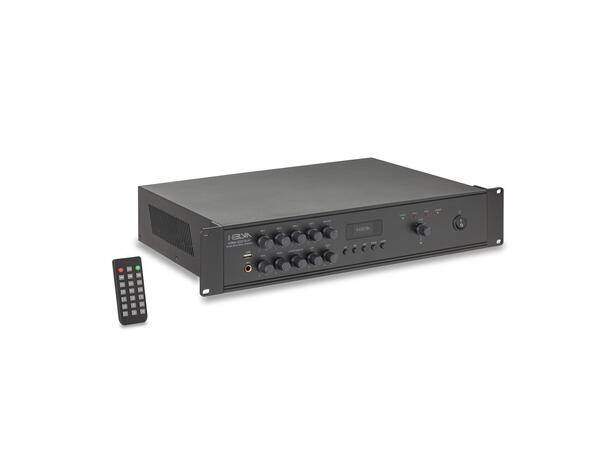

Helvia HSMA / HDMA / HMMA Play Series bring a wide offer of integrated PA Sound Reinforcement solutions with digital amplifiers in class-D with processing, zone number from 1 to 4 with 100V outputs, rated powers between 120W and 350W total*, an overall 4-16O power output and a whole series of features such as DAB+receiver, BT audio streaming, USB player, FM radio, mixer with 1 front Mic input with priority, 3 Mic/Line inputs, +48V Phantom Power, 2 stereo Aux Inputs, Level Attenuators for each zone, EMC input at 100V, auxiliary power supply at +24V DC (only models at 120W and 240W).
In short, these new mixer-amplifiers enclose in 2 standard 19 "units (rack-ear kit included) everything required for a simple and efficient small-to-medium multi-zone installation.
Specifications
| 1 zone |
| Rated power |
120W |
| Freq. response |
100Hz~16KHz |
| Power Outputs |
100V for each zone; Overall @ 4-16O |
| THD |
=1% |
| S/N Ratio |
=80dB |
| N. Channels |
4 Mic Inputs, 2x Aux Line Inputs, 1x FM/DAB+/BT/USB Built-In Player |
| EQ Controls |
Low (± 6dB @ 150Hz) High (± 6dB @ 10kHz) |
| AUX Output |
1000mV |
| AUX 1-2 Inputs |
300mV |
| MIC 1 Input |
15mV ±3mV |
| MIC/Line 2/3/4 Inputs |
30mV ±3mV (Mic Position); 300mV (Line Position) |
| EMC input |
100V |
| BT |
5.0 Version with EDR (10m receiving range, without obstacles) |
| DAB+ |
170MHz-240MHz |
| FM Tuner |
88MHz-108MHz |
| USB Audio Format |
MP3, WAV, WMA, SBC (FAT32, max. 128GByte) |
| Main Power |
AC220-240V, 50Hz/60Hz |
| Off-Load Consumption |
8W |
| Full-load Consumption |
138W |
| Auxiliary Power |
DC 24V – 10A max. |
| Fuse |
F2AL |
| Fan Noise Level |
38 dB (A-weighted) |
| Unit Size (WxDxH) |
482 x 300 x 88 mm (16.8 x 3.5 x 11.8 in) |
| Unit Weight |
6 kg (13.2 lbs.) |
| Packing Size (WxDxH) |
747 x 397 x 164 mm (29.4 x 15.6 x 6.4 in) |
| Packing Weight |
7,5 kg (16.5 lbs.) |
