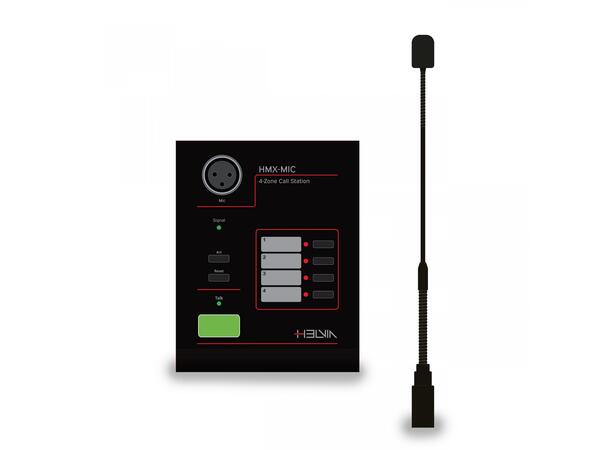

The HMX-MIC is the ideal companion for all paging needs related to the use of the HELVIA HMX-44A matrix mixer. It is a gooseneck microphone with a microphone base powered by the HMX-44A central unit via RJ-45 cable. For lengths over 100m, the base can be connected to an external power supply (included).
The control panel allows selection of each of the 4 zones or all 4 simultaneously. The Chime function is programmable, and an additional stereo mini-jack AUX input is available. All levels (microphone, chime and AUX input) are adjustable.
Specifications
| Power Supply |
24Vdc, 500mA from RJ45 or power adaptor (included) |
| Max. connection length |
100m (CAT5 cable) or 1km with 24Vdc adaptor (included) |
| Capsule |
Back electret condenser |
| Polar Pattern |
Cardioid |
| Controls |

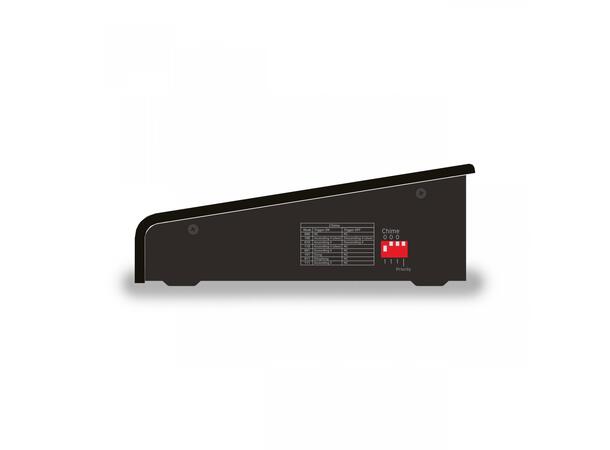

Aux/Mic/Chime levels, chime DIP switches, zone/page buttons |

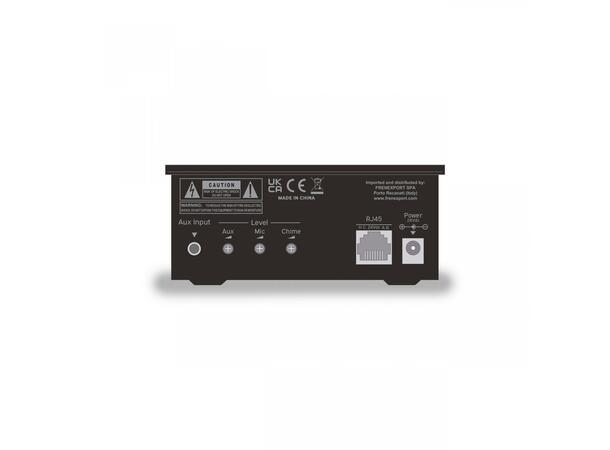

| Connectors |
RJ45 to amplifier, 24Vdc power jack, Aux input |
| Frequency Response (-3dB) |
150Hz - 22kHz |
| Input Level Mic |
-46dBV, Aux |
| Input Impedance Mic |
600 Ohms, Aux |
| Output Level |
10dBV |
| Output Impedance |
balanced 600 Ohms |
| S/N Ratio |
-60dB (all channels selected) |
| Interface |
RS-485 control |
| Zone assign |
4 zones or all selectable |
| Product Size (WxDxH) |
115 x 143 x 460/53 (with Mic/without Mic) mm (4.52 x 5.63 x 18.11/2.09 in) |
| Product Weight |
600 g. (1.32 lbs.) |
| Packing Size (WxDxH) |
430 x 235 x 65 mm (16.93 x 9.25 x 2.56 in) |
| Pakcing Weight |
1.06 kg (2.34 lbs.) |
