ONDA in-wall speaker series is born to satisfy all those indoor installations where sound pressure and quality higher than normal 70/100V systems are requested.

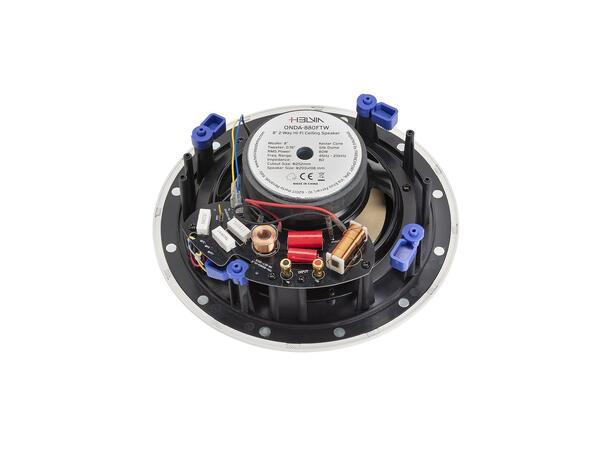

The ONDA speakers are all low-impedance (8ohm), coaxial, with Kevlar woofers, silk-dome tweeters, precision crossovers; essentially true 2-way speakers for professional applications, but ceiling/wall mount.

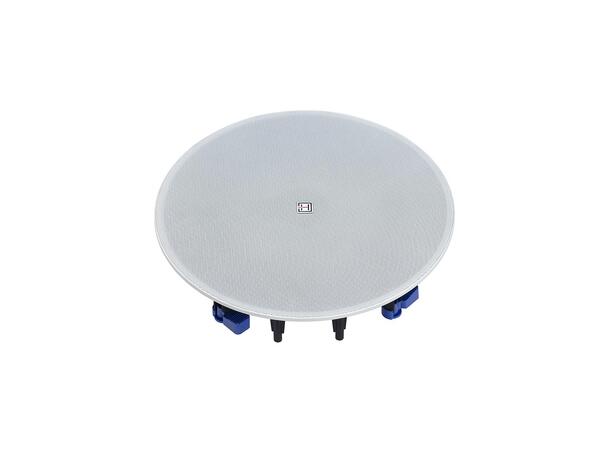

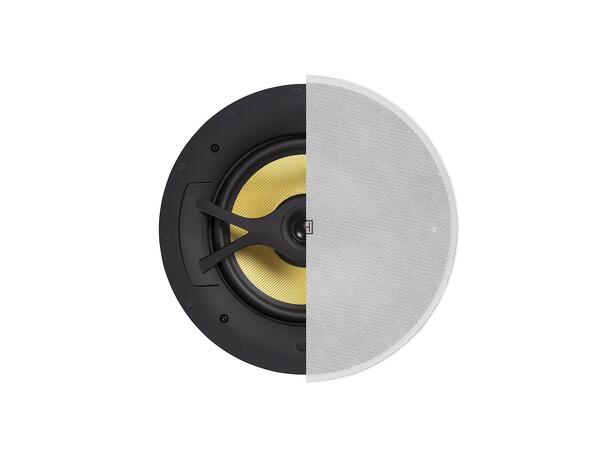

The look of the front panel is minimalist and captivating, and reminds recording studio monitor. The frame-less design, with black ABS frame and white magnetic grids, makes the ONDA speakers extremely discreet. Finally, the grids can be repainted to make them even less visible.
Specifications
| Speaker Type |
2-Way Passive, Coaxial |
| Frequency Response (-10dB) |
45Hz-20kHz |
| Sensitivity (1W @ 1m) |
95dB |
| RMS Power |
80W |
| Impedance |
8 ohm |
| Woofer |
8” (203mm), PP cone Kevlar Woven Cone |
| Tweeter |
0.76” (20mm), Silk Dome |
| High-Freq. Attenuator |
2-position switch (0dB/-2dB) |
| Housing |
ABS |
| IP rate (speaker installed) |
IP54 |
| Mounting |
Quick mounting system with 4 screws |
| Grille |
Frameless Design, Magnetic Mount, Perforated steel with acoustic transparent foam inside, paintable |
| Color |
Black Housing / White Grille |
| Cutout Size |
Ø 252 mm |
| Product Size (WxDxH) |
Ø 290 x 108 mm |
| Speaker Weight |
2,3 kg |
| Packing Size (WxDxH) |
340 x 315 x 115 mm |
| Packing Weight |
2,7 kg |
