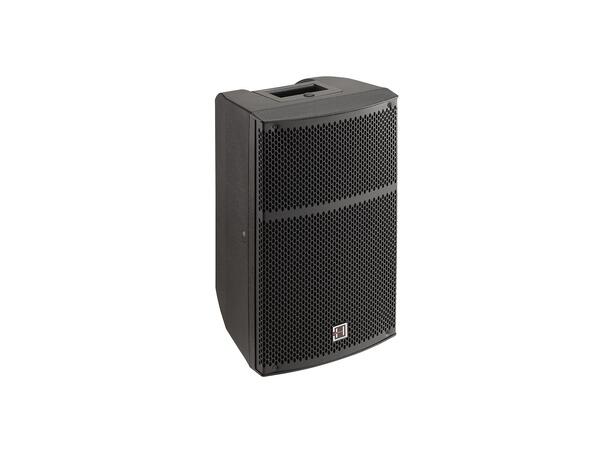

ESTRO Passive Series speakers are part of a wider range of HELVIA product line. It offers 5 models, from 6.5” to 15”. These speakers have been designed to be lightweight, reliable and offer high-level sound in both fixed installation and portable applications.
Powers ranging from 130W to 350W RMS, selected transducers, advanced housing material are the ingredients wisely combined to offer the best to installers and musicians.
ESTRO speakers can be suspended through specific brackets (not included), with eye-bolts (not supplied) and the M8 suspension points, or placed on a speaker stand using the D36mm hole on the bottom.
Features
- 2-Way Passive System with Bass-Reflex
- Sturdy and Lightweight Propylene Cabinet
- Full-metal Grille and Dark-Grey Color
- 220W RMS @ 8ohms
- High-Excursion Woofers and Precision Compression Drivers
- 90°x 60° Symmetric Horn
- 2x 2-Poles Speakers Connectors
- 3 Handle for easy transport
- 36mm Pole Mount Hole
- 4x M8 Flying points
Specifications
- Speaker Type 2-Way Passive Speaker
- Frequency Response [- 10dB] 55Hz-19kHz
- Sensitivity (1W @ 1m) 92dB
- Max SPL 114dB
- RMS Power 220W
- Impedance 8ohm
- HF Type 1.35” v.c. - 1” exit Compression Driver
- Horn Type Symmetric
- Directivity (HxV) 90°x60°
- Crossover Frequency 4kHz
- LF Diameter 10" - 2” v.c.

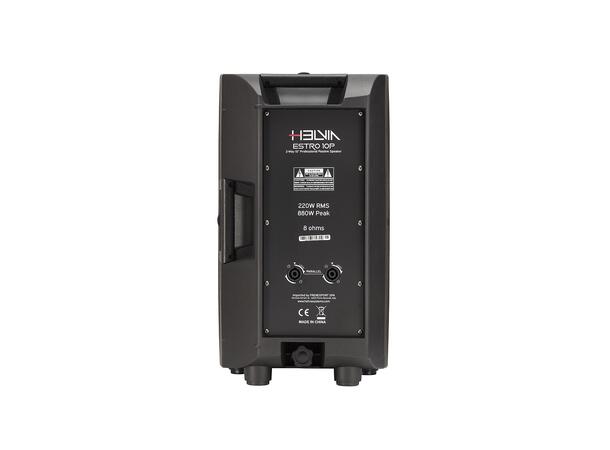

- Input 1 x 2-Poles Speakon connector
- Out 1 x 2-Poles Speakon connector
- Housing material Polypropylene, Dark Grey
- Grille material and thickness Steel, 1.2mm
- Flyable 4x M8 (one on each side)
- Handles 1 on top; 2 on sides
- Pole Mount Standard Ø36mm
- Stage Monitor Use Angle 30°and 45°
- Speaker Size (WxDxH) 302x310x529mm
- Packing Size (WxDxH) 360x370x570mm
- Net Weight (speaker) 10.5kg
- Gross Weight:11.8kg
