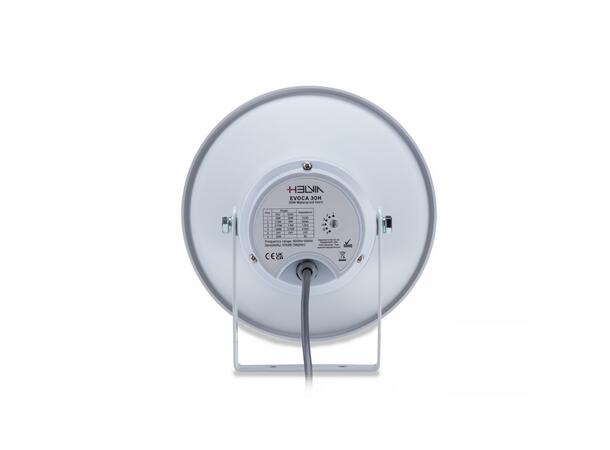

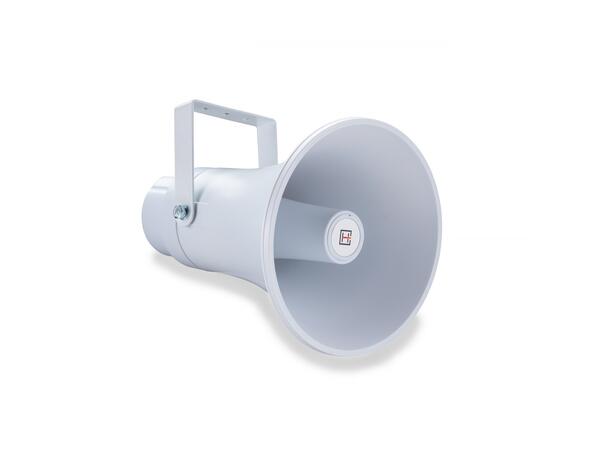

HELVIA EVOCA 30H is a compact, lightweight and waterproof horn speaker, designed to provide high efficiency and high sound intelligibility with low distortion. The built-in line transformer allows the horn to be connected to 70V and 100V constant voltage or low-impedance lines, and select the power through the rotary dial on the rear cover.
The horn can be easily mounted to any wall or ceiling by using the stainless-steel mounting bracket.
Thanks to the weatherproof treated plastic housing, the EVOCA 30H has an IP66 Ingress Protection standard, which make it suitable for outdoor installations.
Specifications
| Rated Power @ 100V |
30W / 15W / 7.5W / 3.75W |
| Rated Power @ 70V |
15W / 7.5W / 3.75W / 1.9W |
| Impedance |
8O / 333O / 666O / 1.3KO / 2.6KO |
| Sensitivity |
105 dB (1W/1m) |
| Frequency Range |
400Hz ~ 10KHz |
| Max SPL |
116.8dB |
| Protection Level |
IP66 |
| Color |
White |
| Horn |
Plastic |
| Diaphragm |
Phenolic |
| Magnet |
Ferric |
| Mounting bracket |
Stainless Steel |
| Mounting holes |
3x Ø7.5mm (0.03 inch) holes with 30mm (1.2 inch) space |
| Horn Size |
Ø240 x 303mm (Ø9.45 x 11.93 inch) |
| Net weight |
2,3 kg – 5.07 lbs. |
| Packing Size |
250 x 250 x 325 mm (98.42 x 98.42 x 127.95 inch) |
| Gross Weight |
2,6 kg – 7.73 lbs. |
