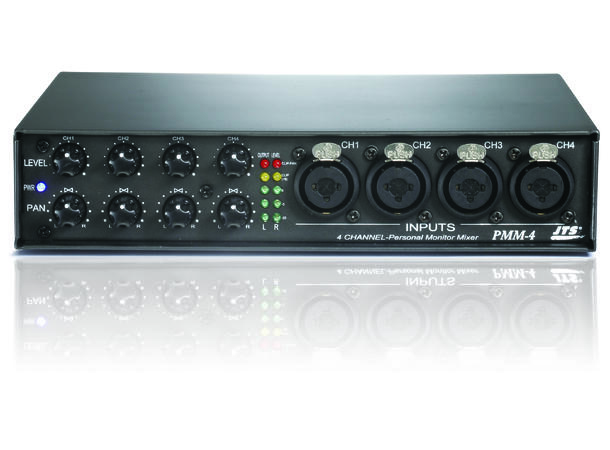

The PMM-4 is ideal as a compact personal monitor mixer for meeting rooms, Houses of Worship, broadcast and educational public address systems. Four inputs with XLR 1/4” phone jack combo connecter. It has two additional auxiliary inputs and four XLR split outputs.PMM-4

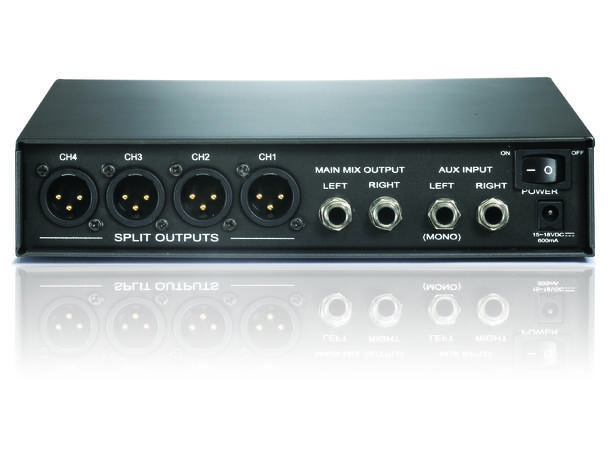

The PMM-4 is ideal as a primary or submixer for meeting rooms, Houses of Worship, broadcast and educational public address systems. Four inputs with XLR 1/4” phone jack combo connecter. Two additional auxiliary inputs and four split outputs are provided for expansion capabilities.
Specification
Frequency Response 22~22,000 Hz
Distortion <0.025%
Noise. <-61dB
CMRR >70dB
Power Supply 12~18VDC, 600mA
Dimensions (mm) 205(D)*212(W)*43.5(H)
Net Weight 1.41kgs
Input Connector XLR / 1/4” balance phone jack combo
Input Impedance 5.9KO
AUX Input Connector 1/4” phone jack (left / right channel)
AUX Input Impedance 18.2 KO(MONO:9.1 KO)
Main Mix Output Connector 1/4” phone jack (left / right channel)
Main Mix Output Impedance balanced:1KO, unbalanced:500O
Output level (Max) 6.5±0.3dB (INPUT CH1~4)
Split Output Connector XLR
Split Output Noise <-110dB
