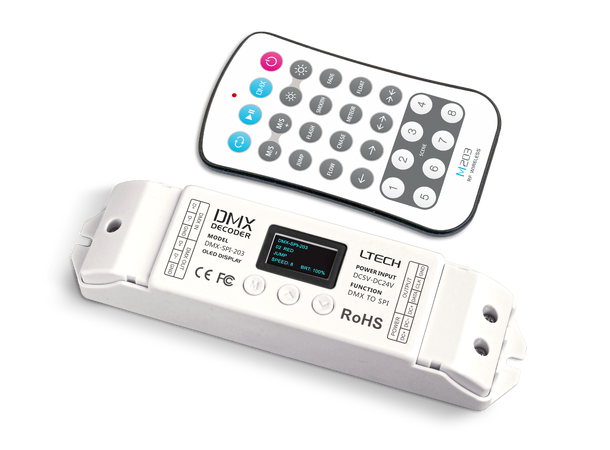

DMX-SPI-203 controls LED with the following compatible ICs: LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, WS2801, WS2803, WS2811, WS2812, P9813.
Supporting international standard protocol DMX512/1990 interface, with DMX administration mode to invoke the built-in functions for choosing mode, speed, brightness, types and direction changing by DMX512 console. Furthermore, it has the DMX decode mode, customers could use DMX512 console to program & control every channel of the LEDs with the compatible ICs listed above. 0-100% dimming range, program any lighting effect required.
Specifications
DMX-SPI-203 Controller: Input Voltage: 5~24Vdc
Power Consumption: 1W
(if the lamps are powered individual)
Output Signal: SPI(TTL)
Change Mode: 540
DMX Channel: DMX Manage Mode: 6CH
DMX Decode Mode: 510CH
Control Qty: 1024 Pixels
Virtual Pixel:1-6 times, Max 1024 pixel
Working Temperature: -30°C~55°C Dimensions: L175×W44×H30(mm) Package Size: L178×W48×H33(mm) Weight(G.W.): 130g
Se datablad for ytterligere informasjon og spesifikasjoner.
