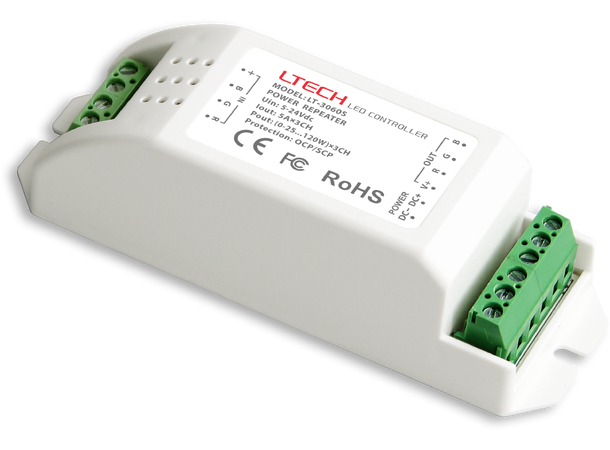

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion,
it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more
power repeater, unlimited quantity of power repeater to be connected theoretically.
Technical specifications:
Input signal: PWM (200Hz-2000Hz)
Input voltage: 5~24Vdc
Current load: 5A × 3CH Max. 15A
Output power: (0~25W...120W) × 3CH Max. 360W
Protection: Over current / Short circuit /Reverse connection protection
Working temperature: -30°C~55°C
Dimensions: L121×W39×H39(mm)
Package size: L123×W42×H42(mm)
Weight(G.W.): 210g
For øvrige tekniske spesifikasjoner se datablad under lenker & dokumenter
