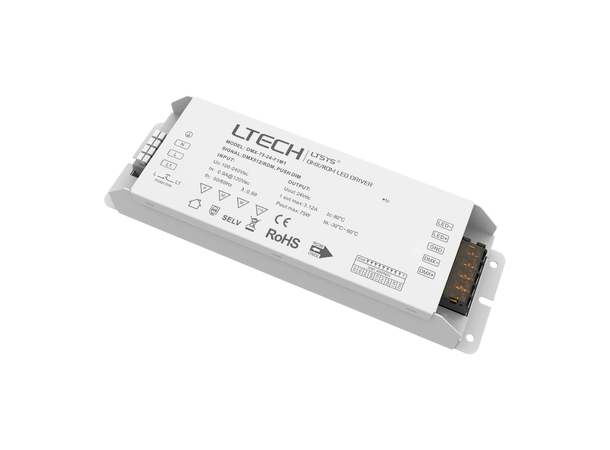

LED Intelligent Driver
Dimming interface: DMX512/RDM, Push DIM.
With the RDM remote device management protocol.
PWM digital dimming, no alter LED color rendering index.
0~100% flicker-free, achieve the level of exemption assessment.
Dimming range from 0-100%, LED start at 0.1% possible.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. Compliant with Safety Extra Low Voltage standard.
Suitable for indoor I/II/III type lamps application.
Technical specifications:
Output:
Output Voltage: 24Vdc
Output Voltage Range: 24Vdc ± 0.5Vdc
Output Current: Max. 6.25A
Output Power: Max. 75W
Output Power Range: 0~75W
Strobe Level: High frequency exemption level.
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Overload Power Limitation: =102%
Ripple & Noise: =200mV
PWM Dimming Frequency: 3600Hz
Input:
Dimming Interface: DMX/RDM, Push Dim
Input Voltage: 100-240Vac
Frequency: 50/60Hz:
Input Current: 115Vac=1.6A, 230Vac=0.8A
Power Factor: PF>0.99/115Vac , PF>0.95/230Vac, at full load
THD: <6% at 115Vac, <12% at 230Vac, at full load
Efficiency(typ.): 85%
Inrush Current(typ.): Cold start 60A at 230Vac
Anti Surge: L-N: 1kV L/N-G: 2kV
Leakage Current: I/P-O/P: <0.5mA/230Vac, I/P-GND: <0.75mA/230Vac
