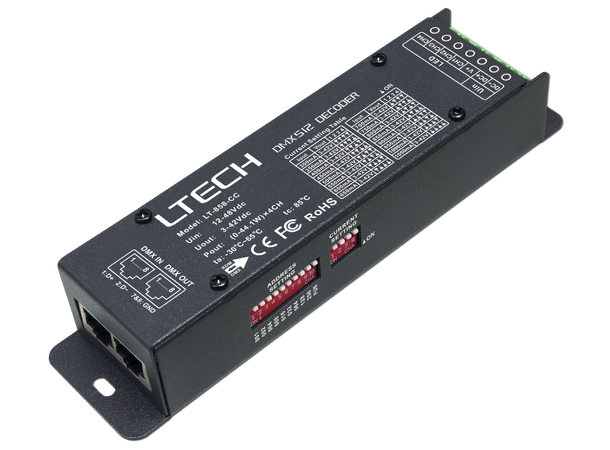

LT-858-CC with the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Realize 0-100% dimming or different lighting effects; work with DIM, CT, RGB,RGBW LED lamps.

• Input Signal: DMX512, RDM

• Input Voltage: 12~48Vdc

• Output Voltage: 3-42Vdc

• Current Load: (300mA-1050mA)×4CH

• Output Power:(0~44.1W)×4CH Max. 176.4W

• DMX512 Socket: RJ45

• Dimming Range: 0~100%

• Working Temp.: -30?~65?

• Dimensions(L×W×H): L175×W42×H33(mm)

• Package Size(L×W×H): L183×W48×H41(mm)

• Weight (G.W.): 310g

.
