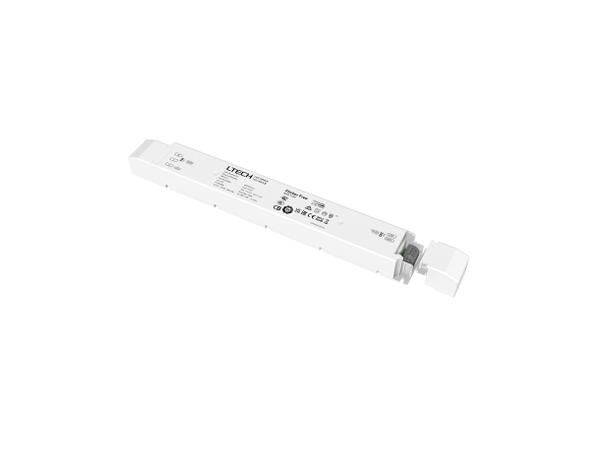

LTECH LED Driver TRIAC 150W 200 - 240VAC inn, 24V ut,150W

LTECH LED Driver TRIAC 150W

200 - 240VAC inn, 24V ut,150W

Varenr: 173079
Alt. varenr: LM-150-24-G1T2
1 092,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ikke på lager i Oslo. Ta kontakt for leveringstid.
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

Data sheet

General
Product Type Constant Voltage Driver
Length (mm) 352
Width (mm) 43
Height (mm) 30
Housing Color White
Housing Material PC
Mounting Surface mounted
Weight (g) 435
CE v

Electronics
Input Domain AC
Input Voltage 220 ~ 240V AC
Input Current max (A) 0.75A @ 230V AC
Output Voltage 24V DC
Output Current (mA) max/output 6250
Output Current Max. (A) 6.25
Output Power Range (W) 0~150
Power Factor at Full Load +0.98 @ 230VAC
Power Supply Internal
Efficiency 91%
Standby Power Loss Max. (W) 0.5
THD (at full load) 6% @ 230V AC
Input Frequency 50 ~ 60Hz
Inrush Current 45A @ 230VAC
CC / CV Constant Voltage

Lighting
Color Range Single Color

Control
Signal PWM-CV
Control TRIAC
Dimming Range 0~100%
Number of Channels 1

Protection
Overload Yes
Restart after Protection Yes
Protection Class II

Environmental
Storage Temperature -40 ~ +80 °C
Operating Temperature -20 ~ +50 °C
IP Rating IP20
Environment Indoor

Other
Country of Origin People's Republic of China
HS Code 8504318050

Approvals
RoHS v
Certification CB
Certification CE
Certification UKCA
Certification TUV

Warranty

Warranty 5 Year

EU Declaration of Conformity

2014/30/EU Electromagnetic Compatibility Directive (EMC) EN61000-3-2 Class C
2014/30/EU Electromagnetic Compatibility Directive (EMC) EN61000-3-3
2014/30/EU Electromagnetic Compatibility Directive (EMC) EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6; EN61000-4-8; EN61000-4-11
2014/30/EU Electromagnetic Compatibility Directive (EMC) EN55015
2014/30/EU Electromagnetic Compatibility Directive (EMC) EN61547:2009
2011/65/EU Restriction of Hazardous Substances Directive (RoHS) + 2015/863/EU v
2009/125/EC EcoDesign requirements for energy-related products Directive (ErP) + (EU) 2019/2020 v
2014/35/EU Low Voltage Directive (LDV) EN 61347-1
2014/35/EU Low Voltage Directive (LDV) EN 61347-2-13

-

ETIM Classification EC002710 LED Driver
Tilbehør
Lenker & dokumenter
Produsentens hjemmeside173079_lm-150-24-g1t2_datablad.pdf
