LUMINEX Lumisplitt 2.10 E DMX Splitter

LumiSplit 2.10 is the result of ten years of experience with Remote Device Management. This rack-mounted 2.10 splitter covers all features of the LumiSplit family and will give you a whole new perspective on Remote Device Management. Because the new boosters are now visible and configurable from any RDM controller, they enable technicians to manage and configure their devices and fixtures like never before. And the RDM filter per zone (A/B) or per port prevents lighting fixtures from being flooded by undesired RDM packets. Designed with a RJ45 connectors, this LumiSplit Ethercon version is sure to become a favourite for fixed installations such as theaters, sports arenas, cruise ships, hotels ...

• DMX input:
   -2x Shielded Neutrik Ethercon connectors (front)

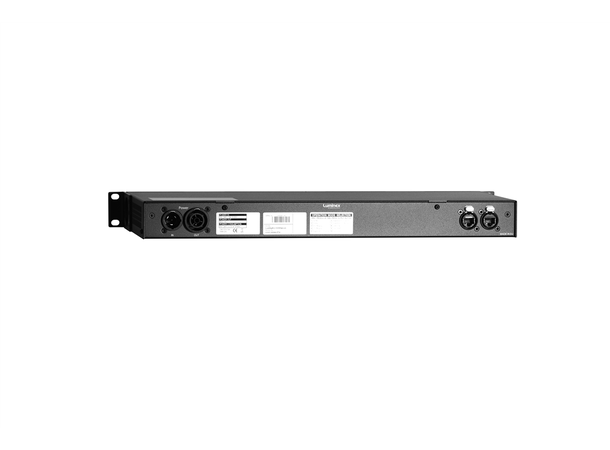

   -2x Shielded Neutrik Ethercon connectors (rear/thru)
• DMX output:

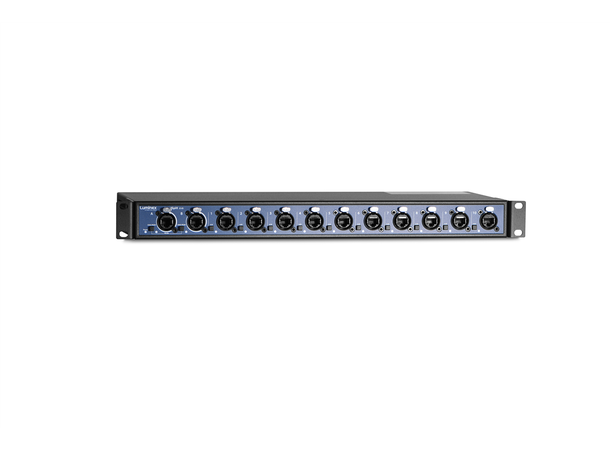

   -10x Shielded Neutrik Ethercon connectors
• DMX zone selection: Yes (per output)
• HTP/LTP merger: Yes
• DMX backup mode: Yes
• Regeneration mode: Yes
• RDM discoverable: Yes
• RDM filtering: Yes (per input and output)
• DMX port isolation: Optical and galvanic isolation per port
• Short circuit protection: Yes
• DMX port termination/biasing: Yes
• Dark mode: Yes
• User presets: 2
• Lockable front panel: Yes
