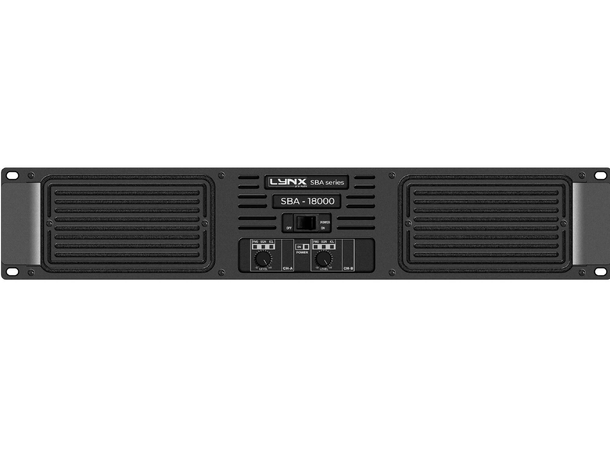

The SBA series has been designed with the aim of offering the proper and more reliable amp to users of very big subwoofers with no concessions. Their output performances (270V/70A) are more than needed to push your subs as far as their maximum limits accept.
These 2-channels devices are based on the field proven Quanta PulseTM Technology with an oversized dual high capacity regulated power supply with PFC to deliver their full performances independently of mains status, and an also oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution.
With Subamp series you make sure that you will get the maximum output performances of your subwoofers.
- Output Power: @ 4 Ohms 2 x 9000 W, @ 8 Ohms 2 x 4500 W
- Frequency Response: Power Bandwidth ± 0.25 dB 20Hz-20KHz
- Phase Response: @ 1 W 20Hz-20KHz ±15 deg
- Total Harmonic Distortion: 20Hz-20KHz <0.05%
- Intermodulation Distortion: SMPTE <0.05%
- Damping Factor: 20-500Hz @ 8 Ohms >500
- Crosstalk: 20Hz-1KHz >80 dB
- Voltage Gain: 0.5 dB steps 32 / 38 / 44 dB
- Sensitivity: Rated Power (26/32/38 dB Gain) 4.7/2.4/1.2 V
- Signal to Noise Ratio: 20HZ-20KHz 118 dB
- Required AC Mains: Operating Voltage (50Hz-60Hz) 90V-265V AC
- Power on Idling (@230V) 0.5 A 1/8 Rated Power (@230V min.Z) 16 A
- Dimmensions
W x H x D (mm) 483×88.9×460 483×88.9×460
W x H x D (inches) 19 x 3.5 x 18.1 19 x 3.5 x 18.1 - Weight
Net 12 Kg / 26.5 lbs - Protections
Soft-start, Turn-on Turn-off transients, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, ICL™, PMS™ and SSP™
