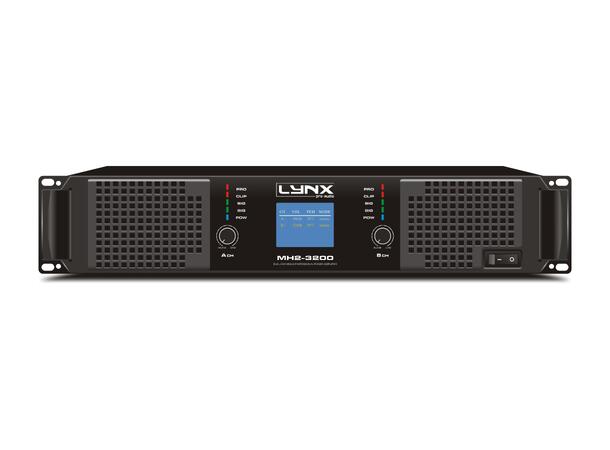

LYNX MH2-3200 Forsterker

2 x 1600W @4Ohm, DSP

Varenr: 185544

Alt. varenr: MH2-3200

13 733,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

	MH2 – 1500	MH2 – 3200
Output power
@ 2 Ohms	2 x 900 W	2 x 2200 W
@ 4 Ohms	2 x 750 W	1 x 1600 W
@ 8 Ohms	2 x 600 W	2 x 1000 W
@ 4 Ohms Bridged	1800 W	4400 W
@ 8 Ohms Bridged	1500 W	3200 W
Frequency response Bandwidth ± 0.25dB
	20 Hz – 20 kHz
Phase response 1 W 20 Hz – 20 kHz
	±15 deg
Total Harmonic Distortion
	<0.05%
Damping factor 20 – 500 Hz @8O
	>700
Crosstalk 20 Hz – 1 kHz
	>75
Sensitivity Rated power
	0.775V / 1.0V / 1.44V
Signal to noise ratio
	>100 dB
Operating voltage (50 – 60 Hz)
	230 V AC 50 Hz / 60 Hz
Dimensions W x H x D (mm)
	483 x 88 x 430/400
Weight
	15.7 Kg	19.5 Kg
Protections
Soft-start, Mute transient on/off, overheating, DC, RF, short circuit, power overload

	MH4 – 4000	MH4 – 5200
Output power
@ 2 Ohms	4 x 1300 W	4 x 1600 W
@ 4 Ohms	4 x 1000 W	4 x 1300 W
@ 8 Ohms	4 x 800 W	4 x 1000 W
@ 4 Ohms Bridged	2 x 2600 W	2 x 3200 W
@ 8 Ohms Bridged	2 x 2000 W	2 x 2600 W
Frequency response Bandwidth ± 0.25dB
	20 Hz – 20 kHz
Phase response 1 W 20 Hz – 20 kHz
	±15 deg
Total Harmonic Distortion
	<0.05%
Damping factor 20 – 500 Hz @8O
	>700
Crosstalk 20 Hz – 1 kHz
	>75
Sensitivity Rated power
	0.775V / 1.0V / 1.44V
Signal to noise ratio
	>100 dB
Operating voltage (50 – 60 Hz)
	230 V AC 50 Hz / 60 Hz
Dimensions W x H x D (mm)
	483 x 88 x 500/470
Weight
	28.4 Kg	25.5 Kg
Protections
Soft-start, Mute transient on/off, overheating, DC, RF, short circuit, power overload
