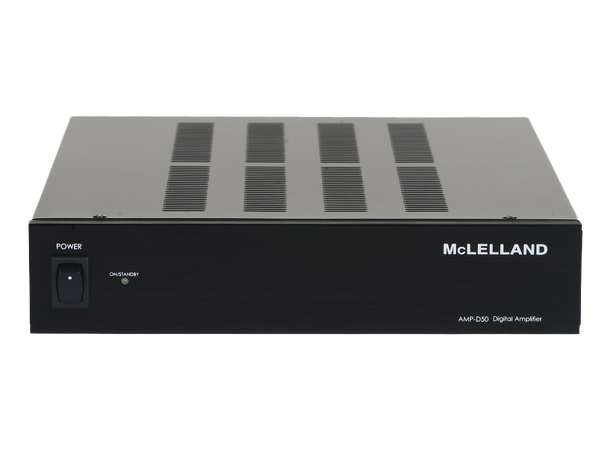

The AMP-D50 is a 2-channel digital amplifier desgined to be used to boost audio amplification where needed , either as a standalone amplifier, or as an addition to a whole-house distributed audio system in order to provide extra amplifier power in larger rooms or spaces. Its space-saving 1/2-rack design allows for quick installation and gives lexibility of mixing and matching with other 1/2-rack products to save valuable equipment rack space.
The powerful 50-Watt class D amplifier in the AMP-D50 is combined with features such as 12v trigger control, audio sensing, volume gain adjustment, and a buffered line output that enables even more amplification of the same audio signal when needed.
Features
•Provides 50 watts ouput per channel.

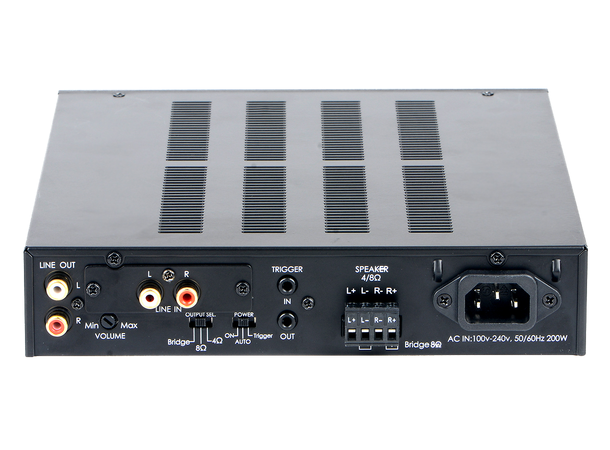

•RCA jacks for signal loop out.
•12VDC Trigger In/Out.
•Selectable for Multiple Turn-on modes.
•Selectable for Multiple output modes.
•Short Circuit and Thermal protections.
Specifications
•Terminal Blocks: Speaker output
•RCA for Audio input
•AUTO SWITCH
•Built-in switching power
•Output power:50 W@4O THD1% RMS ( 70W MAX)
•THD1%: 50W @4O
•THD1%: 28 W @8O
•S/N: -107dB 1K(4O)
•THD: 1%(50W 4O)
•Frequency Response: 10Hz~50KHz(-3dB)
•Input Sensitivity: 300mV(50W 4O)
•Input Impedance (Audio): 10K
•Power output: AC 100~240 V 50/60Hz
•Power consumption: 70W(50W 1% 4O)
•Bridge mode support 100W for speak out ( Mono. Type)
•Dimensions (WxDxH): 10.7” x 7.1” x 1.8” (271 x 180 x 45 mm)
•Weight: 1.85kg. (Net)
