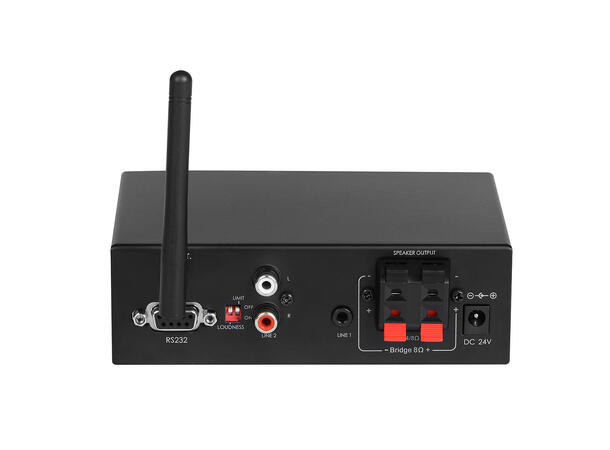

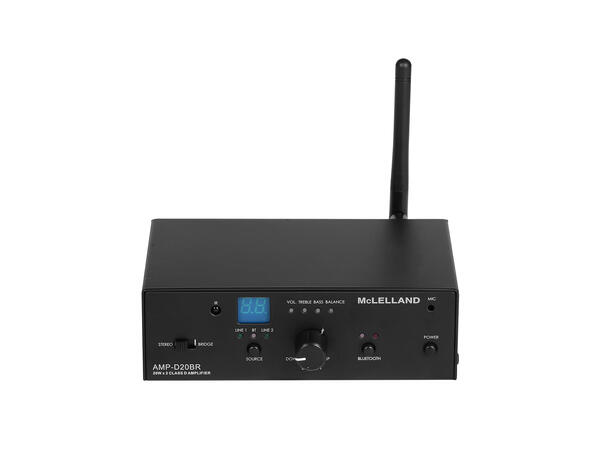

The AMP-D20BR is a 2-channel digital amplifier desgined for commercial applications. Its space-saving design allows for quick installation and ideal for an living room, or other small listening space.
AMP-D20BR is combined with features such as 3 audio input channels, which including one channel for Bluetooth receiver,Treble/Bass/Balance adjustment,volume gain adjustment, RS232 connection, Limiter and Loudness functions.
Features
•Audio inputs : RCA/3.5 Mini Jack
•RS232 Controller
•Input Selection
•VOL/TREBLE/BASS/BALANCE Adjustment
•IR Remote Control (Optional)
•Limit and Loudness ON/OFF switch (DIP switch)
•Stereo/Mono Selectable
•Speaker output: Terminal Blocks
•DC24V Input Jack
Specifications
•Output power:2x17 W@4O THD1% RMS (2x20W MAX)
•THD1%: 8.5W @8O
•THD1%: 31 W @8O
•S/N: -95dB 1K(4O)
•THD: 1%(17W 4O)
•Frequency Response: 35Hz~50KHz(-3dB)
•Input Sensitivity: 330mV(17W 4O)
•Input Impedance (Audio): 10K
•Power input: DC 24 V
•Power consumption: 40W(17W 1% 4O)
•Bridge mode support 40W for speak out ( Mono. Type)
•Dimensions (WxDxH): 5.6” x 3.7” x 1.8” (143 x 95 x 45 mm)
