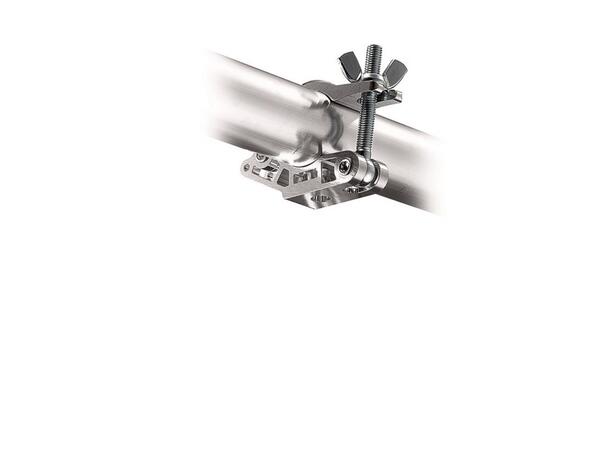

The Avenger C4560-1 MP Slim Eye Coupler grid clamp is a base model eye coupler designed for user customisation. This slim version MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. It offers the user complete customisation and flexibility for any application where a grid clamp is needed. The MP Slim Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm(1.65'') to 52 mm(2.04'') and is 30 mm(1.18'') wide. The attachment hole is 12.5 mm(.5'') and is located on the base of the clamp. Capable of holding up to 180 kg/396.8 lb loads this clamp will perform in many demanding environments. TÜV and SÜD certified. Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C464-1, E200, C4465-1, C464-1
- Slim MP eye coupler made from aluminium in silver finish
- Jaws clamp down on pipes ranging from 42-52 mm/1.65-2.04''
- Base model MP with non-threaded 12.5 mm/0.5'' hole. Customisable
- Slim profile: 30 mm/1.18'' wide w/Max Capacity 180 kg/396.8 lbs
- TÜV/SÜD certified
Spesifications
- Weight: 0.277 kg
- Payload: 180 kg
- Attachment 01: 12,5mm Hole not threaded
- Length: 3 cm
- Certification: TUV
- Clamp range - max. (round tube): 52 mm
- Clamp Range Min Round Tube: 42 mm
- Colour: Silver
- Material: Aluminium
