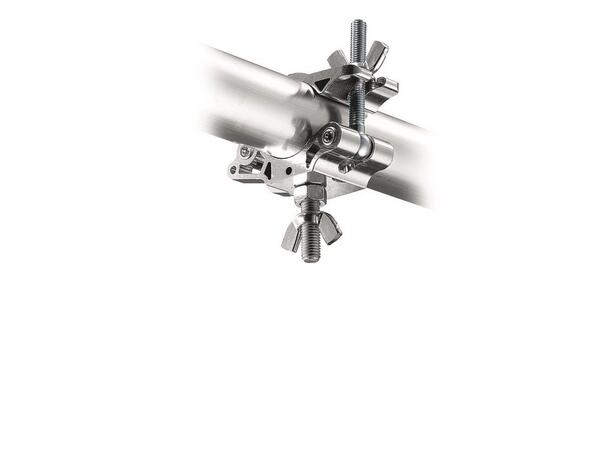

The Avenger C464-1 LP Eye Coupler grid clamp comes supplied with an attached M12 Bolt and includes the nut which is ideal for customised applications. This popular clamp is ideal for many rigging systems, truss and entertainment configurations. The LP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 48 mm(1.9'') to 52 mm(2.04'') and is 50 mm(1.96'') wide. Capable of holding up to 220 kg/661.4 lb loads this clamp will perform in many demanding environments. TÜV and SÜD certified. Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C462-1, E200, C4465-1
- Made from aluminium in silver finish
- Jaws clamp down on pipes ranging from 48-52 mm/1.89-2.04''
- MP Eye Coupler w/M12 bolt & wing nut. Direct connection to yokes
- Max Capacity 220 kg/661.4 lbs
- TÜV/SÜD certified
Spesifications
- Weight: 0.4 kg
- Payload: 220 kg
- Attachment 01: M12 screw
- Length: 50 cm
- Certification: TUV
- Clamp range - max. (round tube): 52 mm
- Clamp Range Min Round Tube: 48 mm
- Colour: Silver
- Material: Aluminium
