Features

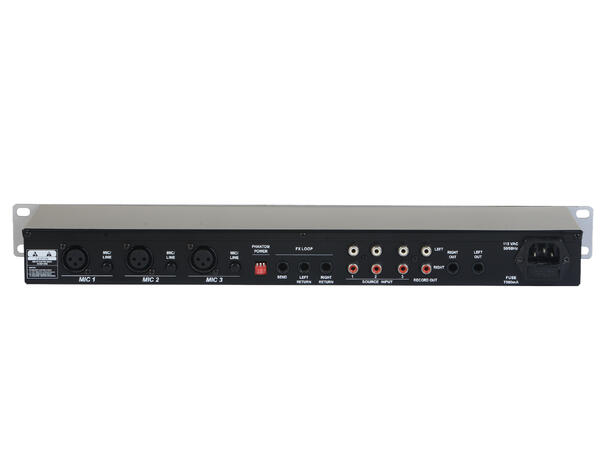

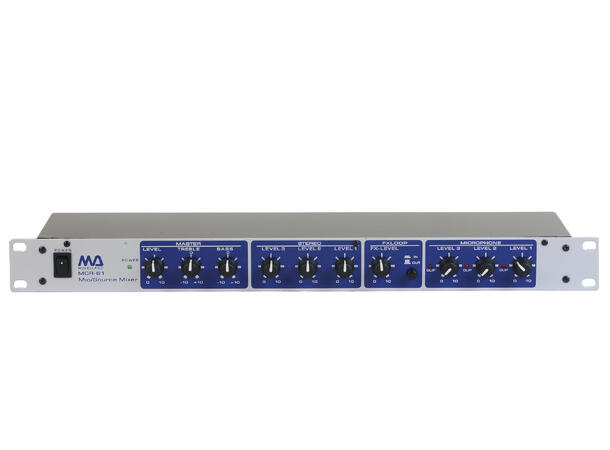

•19” single rack mount microphone and source mixer
•6 channels total inputs
•3 channels XLR & 3 channels stereo RCA input
•Left & Right 1/4” TRS mian out
•FX Loop: 1/4” Left & Right RETURN and SEND jacks
•12V phantom power
Specifications
•Imput Impedance: 600 Ohm(Mic XLR), 22K Ohm(RCA Bus input)
•FX Loop Impedance: 22K Ohm(1/4” TRS Unbalanced)
•Max. Input Level: +20 dBV(Mic), 24 dBV(Line)
•Max. Gain: 60 dB(Mic), 26 dB(Line)
•Tone Control: 12 dB Treble/Bass Cut
•Max. Output Level: +17 dBV
•Output Impedance: 51 Ohm
•Phantom Power Supply: 12V
•S/N Ratio: 96 dB
•THD: < 0.025%
•Dimension: 436 mm(W) x 123 mm(D) x 42.8 mm(H)
•Weight: 2.2 kg
