FEATURES
EXTREMELY QUIET OPERATION
Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theatre mode reduces the fan speed depending on haze output level.
LOWEST FLUID CONSUMPTION ON THE MARKET
At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.
LONGEST HANGING TIME
Our MDG Neutral fluid is specially created for the longest hanging time.
VARIABLE HAZE OUTPUT
0-100% haze output control from your DMX / RDM device. 100% duty cycle.
APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.
NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
WEATHERPROOF ENCLOSURE

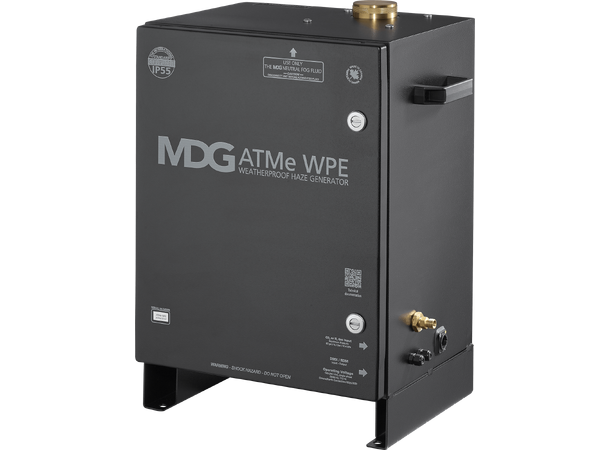

With its weatherproof and dust-resistant enclosure this IP55-rated WPE version is ideal for outdoor use.
SPECIFICATIONS
Enclosure: Weatherproof and dust-resistant IP55-rated
Fluid consumption: 55 ml (1.86 oz) per hour at 1.38 bar (20 psi). 110 ml (3.3 oz) per hour at 2.76 bar (40 psi)
CO2 consumption: 0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi). 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
Reservoir capacity: 2.5 L (0.66 US gallon)
APS™ (Automatic Purging System): Standard
Haze colour: Pure white
Particle size: 0.5 - 0.7 micron
Total running time: 46 hours at 1.38 bar (20 psi) with a full tank. 23 hours at 2.76 bar (40 psi) with a full tank
Warm-up time: 8 minutes (maximum)
Fluid type: MDG Neutral
Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
Power consumption: 715 W
Noise emission: 45.4 dB (A) at 1 m (3.3 ft)
DIMENSIONS
Length: 46.7 cm (18.4”)
Width: 48.8 cm (19.2”)
Height: 60.7 cm (23.9”)
Weight: 26.8 kg (59 lb)
Shipping weight: 35.8 kg (79 lb) with flight case
Approval: CE certified, CSA and UL approved
