FEATURES
VARIABLE FOG OUTPUT
0-100% fog output control from your DMX/RDM device, or direct local control.
SECOND PERSONALITY
MAX 3000APS configuration setting.
FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.
NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
100% DUTY CYCLE
At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.
APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.
SINGLE FOG OUTPUT
With its single nozzle, the maximum fog output is 100 m3 (3,531 ft3) per minute.
SPECIFICATIONS
Maximum fog output: 100 m3 (3,531 ft3) per minute
Fluid consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
Gas type: CO2 or N2
Gas consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi

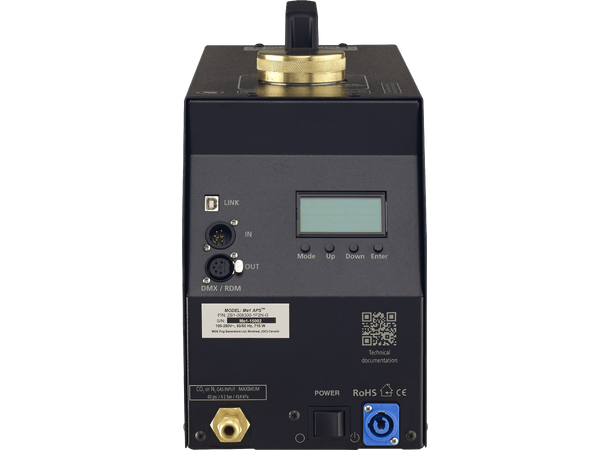

Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
Reservoir capacity: 2.5 L (0.66 US gallon)
APS™ (Automatic Purging System): Standard
Fog colour: Pure white
Particle size: 0.5 - 0.7 microns
Warm-up time: 8 minutes (maximum)
Fluid type: MDG Neutral
Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
Power consumption: 715 W
DIMENSIONS
Length: 61 cm (24”)
Width: 18 cm (7”)
Height: 30 cm (12”)
Weight: 15.62 kg (35 lb)
Shipping weight: 29.12 kg (64 lb) with flight case
Approval: CE certified, CSA and UL approved
