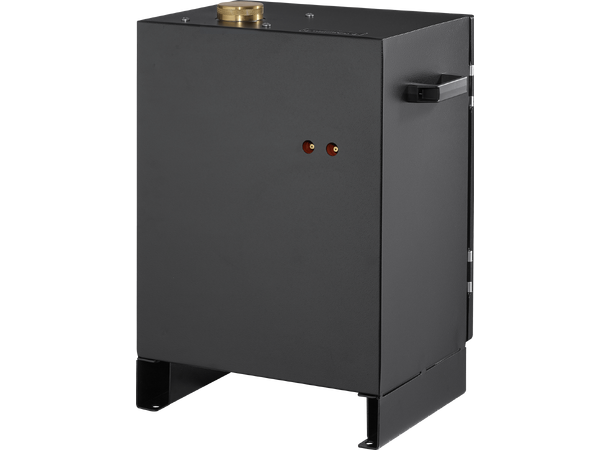

MDG Me2 Dual Output Røykmaskin IP55

Profesjonell røykmaskin med CO2 drift

Varenr: 158508
107 155,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

FEATURES

WEATHERPROOF ENCLOSURE

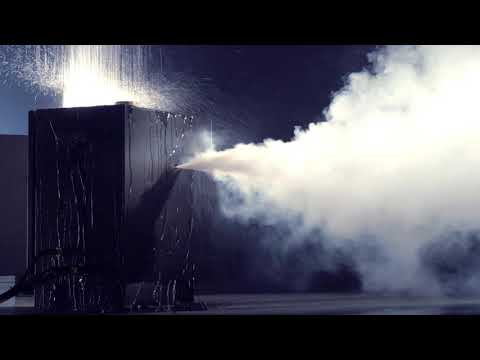

With its weatherproof and dust-resistant enclosure this IP55-rated WPE version is ideal for outdoor use.

DUAL FOG OUTPUT

With its two nozzles, the maximum fog output is 200 m3 (7,063 ft3) per minute.

VARIABLE FOG OUTPUT

0-100% fog output control from your DMX/RDM device, or direct local control.

FLUID CONSUMPTION

At maximum output (2.76 bar / 40 psi) Me2 uses only 2 L (0.53 US gallon) of fluid per hour.

100% DUTY CYCLE

At all output levels Me2 produces a high-quality, consistent fog as long as there is fluid and gas.

NUMEROUS CONTROL OPTIONS

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

APS™ (AUTOMATIC PURGING SYSTEM)

This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

SPECIFICATIONS

Enclosure: Weatherproof and dust-resistant IP55-rated
Maximum fog output: 200 m3 (7,063 ft3) per minute
Fluid consumption: 2 L (0.53 US gallon) per hour at 2.76 bar/40 psi
Gas type: CO2 or N2
Gas consumption: 2.68 kg (5.90 lb) per hour at 2.76 bar / 40 psi
Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
Reservoir capacity: 2.5 L (0.66 US gallon)
APS™ (Automatic Purging System): Standard feature
Fog colour: Pure white
Particle size: 0.5 - 0.7 microns
Warm-up time: 8 minutes (maximum)
Fluid type: MDG Neutral
Voltage: 100 - 250 VAC, 50/60 Hz single phase
Power consumption: 1,415 W

DIMENSIONS
Length: 34 cm (13.4”)
Width: 48.8 cm (19.2”)
Height: 60.7 cm (23.9”)
Weight: 26.3 kg (58 lb)
Shipping weight: 35.4 kg (78 lb) with flight case
Approval: CE certified, CSA and UL approved
