FEATURES
VARIABLE FOG OUTPUT
0-100 % fog output control from your DMX/RDM device, or direct local control.
FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me4 uses only 4 L (1.06 US gallon) of fluid per hour.
100% DUTY CYCLE
At all output levels Me4 produces a high-quality, consistent fog as long as there is fluid and gas.

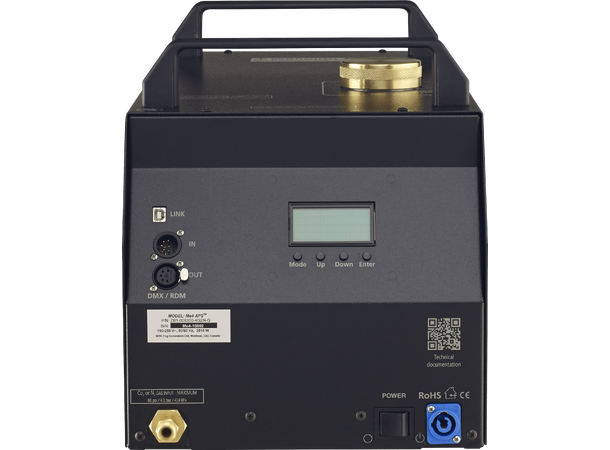

NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.

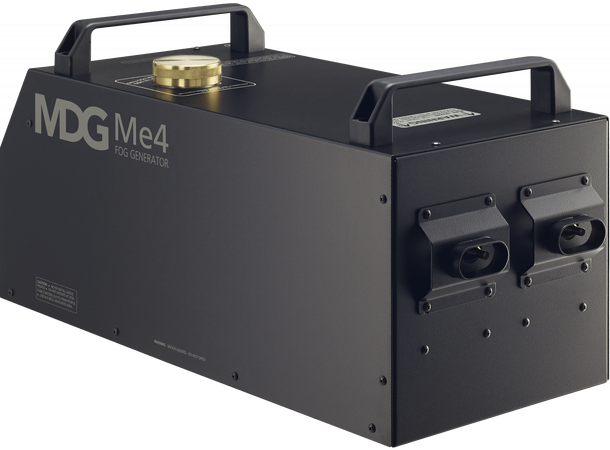

QUAD FOG OUTPUT
With its four nozzles, the maximum fog output is 400 m3 (14,126 ft3) per minute.
SPECIFICATIONS
Maximum fog output: 400 m3 (14,126 ft3) per minute
Fluid consumption: 4 L (1.06 US gallon) (per hour at 2.76 bar/40 psi)
Gas type: N2
Gas consumption: 3.4 kg (7.5 lb) per hour at 2.76 bar / 40 psi
Control: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
Reservoir capacity: 6.5 L (1.7 US gallon)
APS™ (Automatic Purging System): Standard
Fog colour: Pure white
Particle size: 0.5 - 0.7 microns
Warm-up time: 8 minutes (maximum)
Fluid type: MDG Neutral
Operating voltage: 190 - 250 VAC, 50/60 Hz single phase
Power consumption: 2,815 W
DIMENSIONS
Length: 68.5 cm (27”)
Width: 28 cm (11”)
Height: 30 cm (12”)
Weight: 33 kg (72 lb)
Shipping weight: 44 kg (97 lb) with flight case
Approval: CE certified, CSA and UL approved
