FEATURES
EXTREMELY LOW FLUID CONSUMPTION: 35 ML (1.18 US FL OZ) PER MINUTE AT FULL OUTPUT.
ADJUSTABLE LOW FOG DENSITY. 100 % DUTY CYCLE.
LOW PRESSURE OR HIGH PRESSURE VERSIONS AVAILABLE

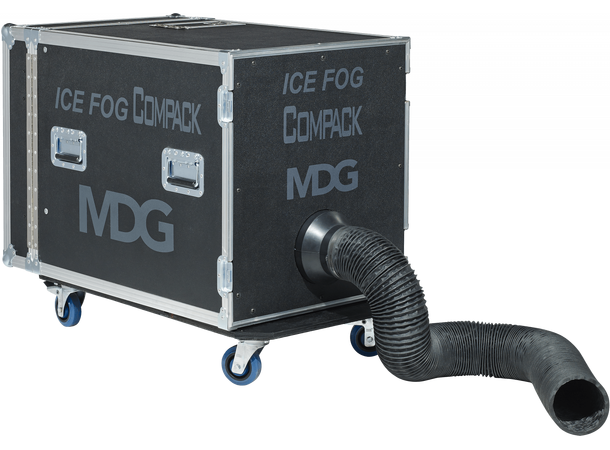

SELF-CONTAINED UNIT ON WHEELS FOR EASY TRANSPORT

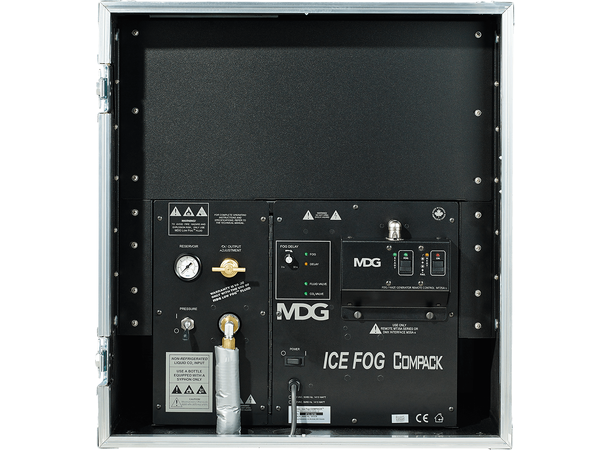

DETACHABLE REMOTE CONTROL AND 8 M (26 FT) CABLE INCLUDED
COMPATIBLE WITH DMX INTERFACE AND REMOTE CONTROL TIMER
SPECIFICATIONS
Liquid CO2 type: Low pressure version: refrigerated High pressure version: non-refrigerated:
Liquid CO2 consumption: Low pressure version: 1.5 L (0.40 US gallon) at 15.5 bar (225 psi) per minute. High pressure version: 1.35 kg (3 lb) at 60.3 bar (875 psi) per minute
Reservoir capacity: 2.5 L (0.66 US gallon)
Fog colour: Pure white
Particle size: 0.5 - 4.5 microns
CO2 running time: Low pressure version: 180 L (48 US gallon) canister (DEWAR) = 120 minutes. High pressure version: 23 kg (50 lb) canister = 17 minutes
Warm-up time: 8 minutes (maximum)
Fluid type: MDG Low Fog
Operating voltage (single phase): 115 or 230 VAC, 50/60 Hz
Power consumption:1,450 W
DIMENSIONS
Total length: 1.15 m (45 1/8“)
Operating length: 1.08 m (42 3/8”)
Width: 63.5 cm (25”)
Height: 82.5 cm (32 1/2”)
Weight: 91 kg (200 lb)
Approval: CE certified and ETL field approved
Fluid consumption: 35 ml (1.18 oz) per minute at full output
