Description

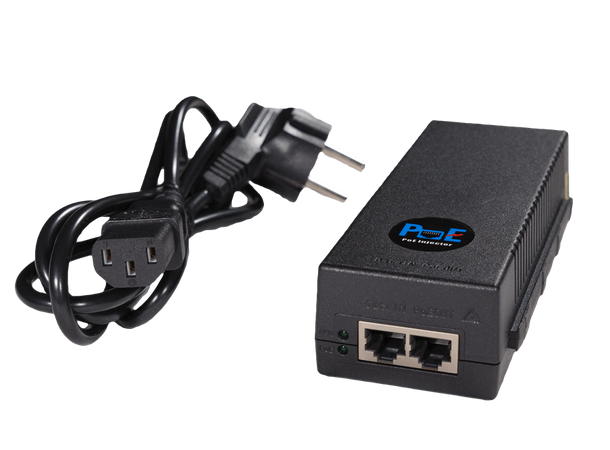

The PoE Injector is an UL listed one channel 10/100/1000M POE injector which fits the IEEE802.3af standard, and can output 15.4W of power for the end devices.
Technical specifications
No. of Ports: 1
Pass Through Data Rates:
10/100/1000 Mbps
Power over Ethernet Output:
Pin Assignment and Polarity:
3/6 (+), 1/2 (-)
Output Power Voltage: 55Vdc
User Port Power: 15.4W
Input Power Requirements:
AC Input Voltage: 100 to 240 Vac
AC Input Current: 0.2A 100-240 Vac
AC Frequency: 50 to 60 Hz
Dimensions 150mmx65mmx38mm
Weight 0.4 kg
Indicators:
System Indicator: AC Power
User Indicator: Channel Power
Connectors:
Shielded RJ-45, EIA 568A and 568B
Environmental Conditions:
Operating Ambient Temperature:-10 to 45?
Operating Humidity:
Maximum 90%, Non-condensing
Storage Temperature:-20 to 70?
Storage Humidity:
Maximum 95%, Non-condensing
Reliability:
MTBF: 100,000 hrs. @25?
Regulatory Compliance:
IEEE 802.3af (PoE), RoHS Compliant, CE, FCC
Electromagnetic :
FCC Part15, Class B
Emission & Immunity:
FCC Part15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
Surge Protection:
AC port: 6kV
RJ45 port: 4kV
Safety Approvals:
UL/cUL Per EN 60950-1
GS Mark Per EN 60950-1
KC, PSE, CB, CCC, BSMI, EAC,NOM, S-MARK etc.
