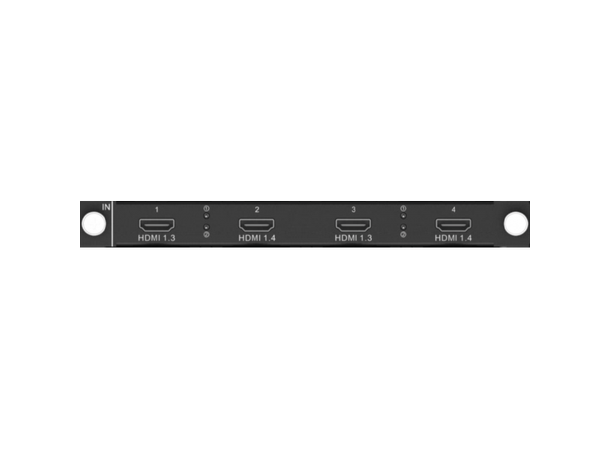

NOVASTAR input card for NOVAH

Novastar input card for NOVAH, 2xHDMI 1.3 + 2xHDMI 1.4

• Support for 10-bit input source.
• Does not support interlaced signal input.
• HDMI 1.3 input:
• 2x HDMI 1.3
  - Each connector supports the maximum resolution of 2048×1152@60Hz, and the minimum resolution of 800×600@60Hz.
  - Custom resolutions: max. width: 2560 pixels (2560×972@60Hz), max. height: 2560 pixels (884×2560@60Hz).
  - HDCP 1.4 compliant
• 2x HDMI 1.4
  - Each connector supports the maximum resolution of 2048 ×1152@60Hz, and the minimum resolution of 800×600@60Hz.
  - Custom resolutions: max. width: 2560 pixels (2560×972@60Hz), max. height: 2560 pixels (884×2560@60Hz).
  - HDCP 1.4 compliant
• HDMI 1.4 input:
• Two HDMI 1.4 connectors are used for input, and two HDMI 1.3 connectors are unavailable.
• Each connector supports the maximum resolution of 3840×1080@60Hz.
• Custom resolutions: max. width: 4096 pixels (4096×1124@60Hz), max. height: 4095 pixels (1014×4095@60Hz).
• HDCP 1.4 compliant
• Status LEDs:
  - On: The input source is accessed normally.
  - Off: No input source is accessed or the input source is abnormal.
