NOVASTAR Output card NOVAH

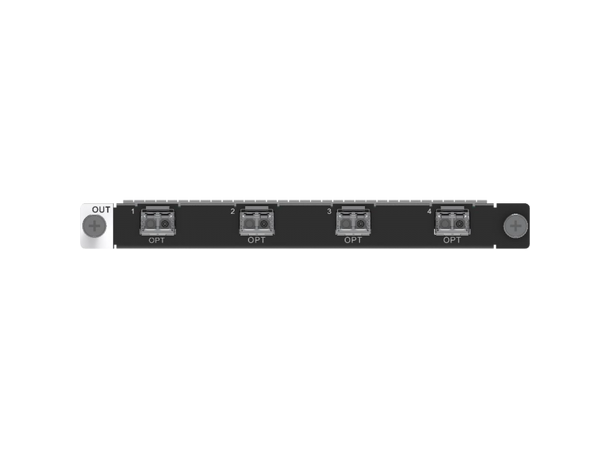

Novastar output card for NOVAH, 4xoptical fiber.

4x 10G OPT ports

• This card can load up to 20,800,000 pixels (max. width: 16,384 pixels, max. height: 16,384 pixels)
• Independent, copy and backup modes are supported.
• SM and MM optical modules are both supported, with a transmission distance of up to 10 km.
• Supports 8-bit and 10-bit outputs.
• The optical module supports SFP+ encapsulation. The supported module specifications include the followings:
  - 10G SFP+ SR optical module
  - 10G SFP+ LRM optical module
  - 10G SFP+ LR optical module
  - 10G SFP+ ER optical module
  - 10G SFP+ ZR optical module
  - SFP+ CWDM optical module
  - SFP+ DWDM optical module
  - SFP+ BIDI optical module

Independent
Four OPT ports are all used for output and have the same loading capacity.
The loading capacity of one port is equal to that of 8 Ethernet ports.

Copy
OPT 1 and OPT 2 are used for main output. OPT 3 copies the output on OPT 1, while OPT 4 copies the output on OPT 2.

Backup
OPT 1 and OPT 2 are used for main output. OPT 3 serves as the backup of OPT 1, while OPT 4 serves as the backup of OPT 2.

Note: Four 10G SFP+ LR optical modules are included with the card and are already installed into the OPT ports.
