The LCB2K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD screens in advertising media, digital signage, commercial display and other fields.
Features

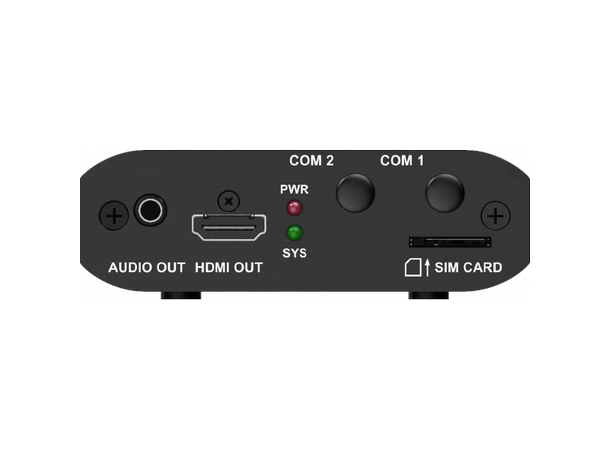

Output
- 1x HDMI connector
- 1x Stereo audio connector: The audio sample rate of the internal source is fixed at 48 kHz.

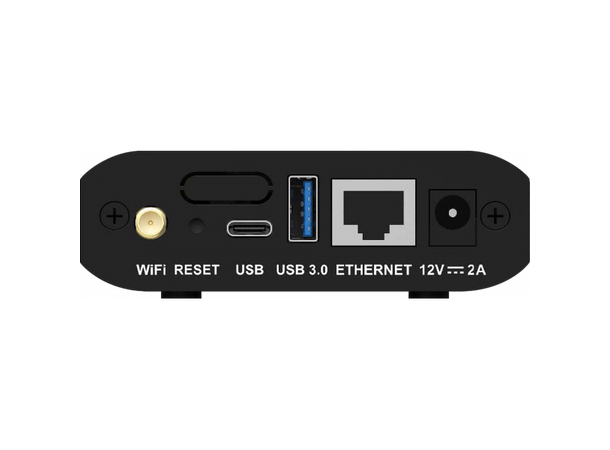

Control
- 1x USB 3.0 (Type A) port: Allows for playback of content imported from a USB drive and firmware upgrade over USB.
- 1x USB (Type C) port: Connects to the control computer for solution publishing and screen control.
- 1x Fast Ethernet port: Connects the control computer to the device, or connects to a LAN or public network for solution publishing and screen control.
Performance
- Powerful processing capacity: Quad-core processor @1.3 GHz, Support for decoding of 4K videos
- 1 GB of RAM
- 16 GB of internal storage
- Flawless playback: Playback of 1x 4K video, 2x 1080p videos, 4x 720p videos
Functionality
- All-round control plans
- Enables users to publish content and control screens from a computer, mobile phone, or tablet.
- Allows users to publish content and control screens from anywhere, anytime.
- Allows users to monitor screens from anywhere, anytime.
- Synchronous playback across multiple screens (Playback limit: 1x 1080p video)
- NTP time synchronization
- GPS time synchronization (The specified 4G module must be installed).
- RF time synchronization (The specified RF module must be installed).
- Switching between Wi-Fi AP and Wi-Fi STA
- In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the LCB2K. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
- In Wi-Fi STA mode, the user terminal and the LCB2K are connected to the Wi-Fi hotspot of a router.
- Support for 4G modules: The LCB2K ships without a 4G module. Users have to purchase 4G modules separately if needed.
- Network connection priority: Wired network > Wi-Fi network > 4G network When multiple types of networks are available, the LCB2K will choose a signal automatically according to the priority.
Input voltage: DC 12 V, 2 A
Maximum power consumption: 18 W
Storage Capacity RAM: 1 GB
Internal storage: 16 GB
Operating Temperature : -20°C to +60°C
Operating Humidity: 0% RH to 80% RH, non-condensing
Storage Temperature: -40°C to +80°C
Storage Humidity0% RH to 80% RH, non-condensing
Dimensions: 123.0 mm × 89.0 mm × 29.5 mm
Net weight: 255.4 g
Gross weight: 620.8 g
Note: It is the total weight of the product, accessories and packing materials packed according to the packing specifications.
Packing Dimensions: 278.0 mm × 63.0 mm × 221.0 mm
Accessories
- 1x Omnidirectional Wi-Fi antenna
- 1x Power adapter
- 2x Racks
- 4x Screws
- 1x Packing list
