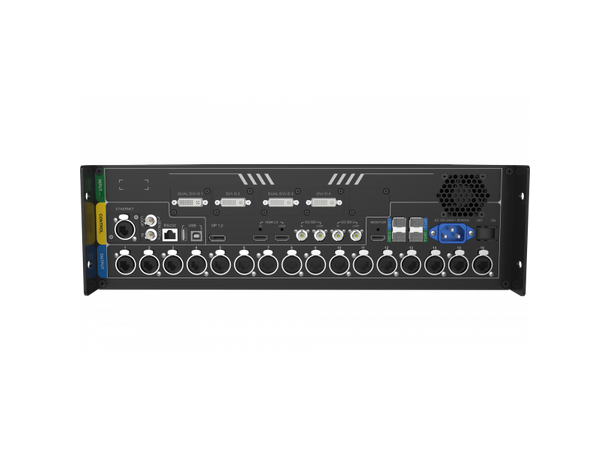

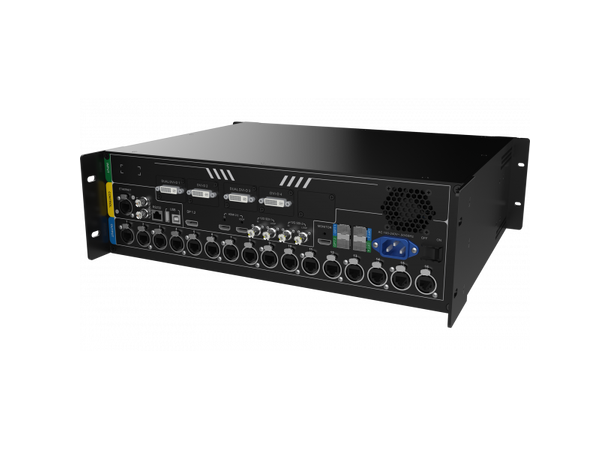

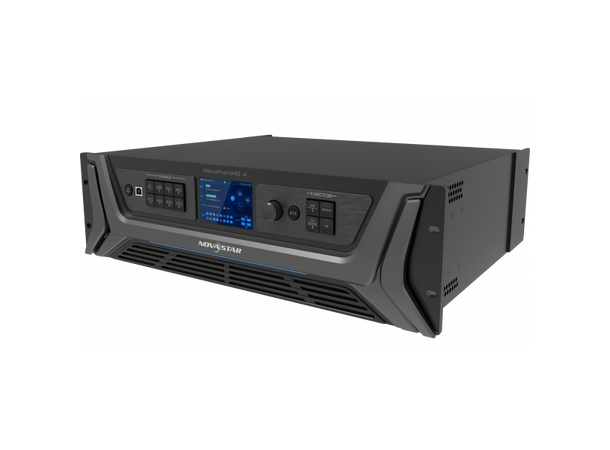

The NovaPro UHD JR is NovaStar's all-in -one controller that integrates video processing with sending card functions.
The NovaPro UHD JR features multiple input connectors, supporting up to 8 inputs simultaneously, and multiple output connectors, including 16 Ethernet ports and 4 optical fiber ports. Thanks to 4Kx2K@60Hz ultra high high-definition inputs and outputs, the product can be widely used for applications, such as stage control systems, conference sites and exhibition sites.
Power connector: AC 100-240 V 50/60 Hz
Operating temperature: -10°C - 50°C
Storage temperature: -30°C - 70°C
Operating humidity: 0% RH - 80% RH
Dimensions: 3U standard chassis 482.6x396.0x139.0 (mm)
Max power consumption: 70 W
Weight: 6.3 kg
Features:
- Various inputs and outputs. Provides 1 x DP 1.2, 4 x DVI, 1 x HDMI 2.0 with loop output and 2 x 12G 12G-SDI with loop output
- More output connectors, larger loading capacity. Provides 16 x Neutrik Ethernet output and 4 x optical fiber output , with loading capacity up to 8'300'000 pixels
- DVI mosaic. An input source can be made up of at most 4 DVI input sources
- HDR output. Greatly enhances display image quality quality, providing more clear and vivid imageimage. 3D image output
- Decimal refresh rate
- Low-latency output. Realizes zero frame latency from device to receiving card card
- Customized BKG settings. Supports pure color and image BKGs
- Personalized image scaling. Supports 3 kinds of image scaling modes: auto fit, pixel to pixel, custom
- Capture function. Captures input source image which can be used as a BKG image
- Cascading supported
- Up to 4 devices can be cascaded to load a supersuper-large screen screen
- V-Can (smart control software from supported
- 10 presets. At most 10 user presets can be created and saved as templates which can be used directly and conveniently
- EDID management supported. Supports custom EDID and standard EDID
