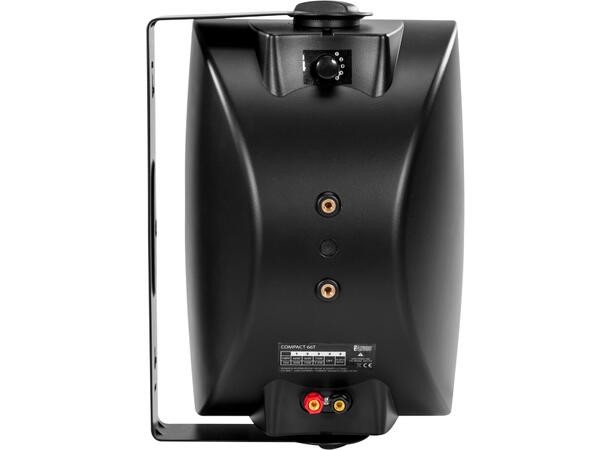

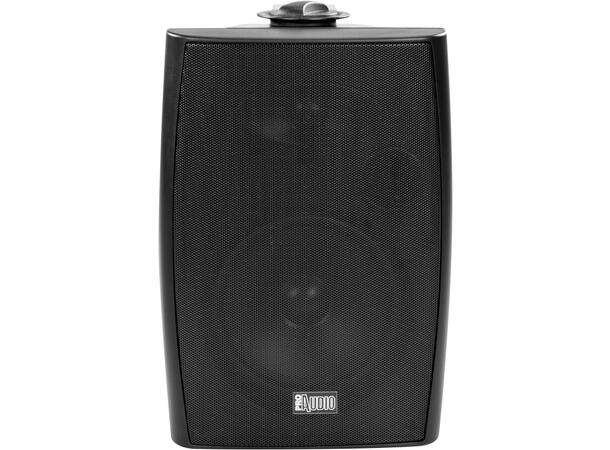

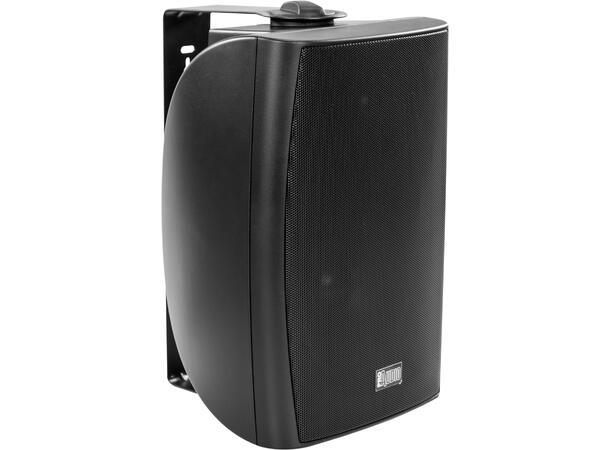

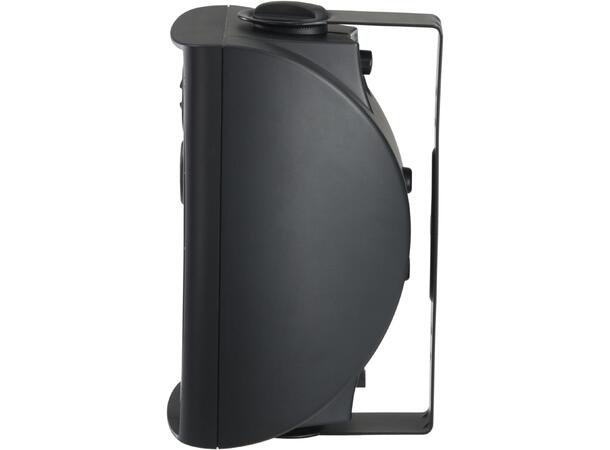

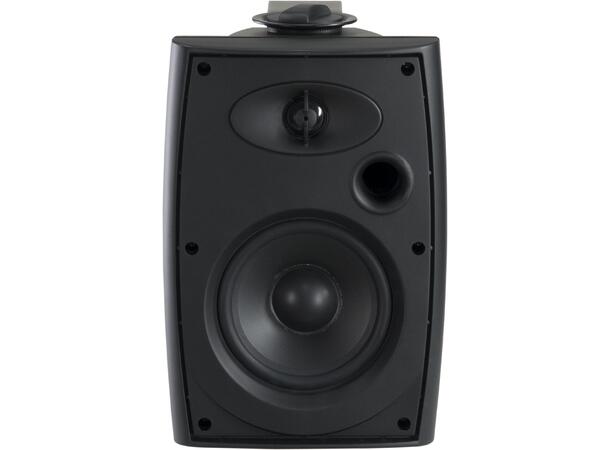

COMPACT series of speakers have been designed for audio installations requiring clear reproduction of music and speech, featuring compact and sturdy cases, elegant design and easy installation. Two-way speakers with constant directivity, COMPACT series are suitable for constant-voltage (70/100 V) or constant-impedance (8 Ohm) systems. Woofers are made of polypropylene, high-excursion. Tweeters, equipped with Mylar domes, are mounted on constant-directivity horns, providing natural and smooth sound reproduction. Available in white or black colour, COMPACT speakers allow easy and quick installation by using the included adjustable mounting brackets.
Features:
Built-in, multi-tap constant voltage transformer.
Switch to select constant-voltage (70/100 V) or constant-impedance (8 Ohm) modes.
Built-in low-inductance passive crossover.
Semispherical body made of high-density polyurethane, scratch-proof, lightweight and UV resistant.
Protective perforated steel grille.
Connections by terminals with screw fixing.
Available colours: black, white.

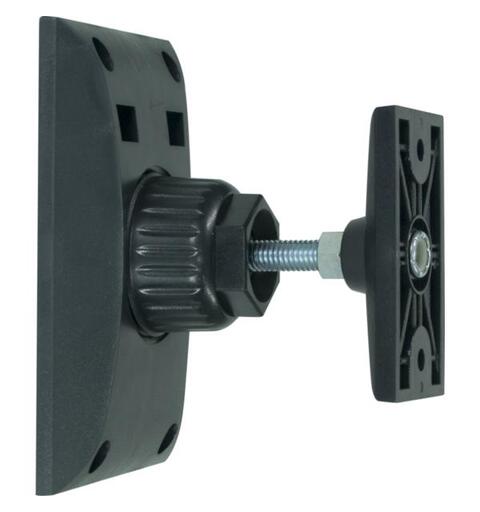

Adjustable wall bracket included.
LOUDSPEAKER
System type: passive 2 way
COMPONENTS
Low frequency: 6.5''
High frequency: 1.5''
FEATURES
AES/program power: 60/120W
Input 100 V: 15-30-60W
ACOUSTICAL SPECIFICATIONS
Sensitivity: 90dB @1W/1m (free field)
Impedance: Low impedence 8 Ohm
Constant voltage: 70/100 V
Frequency response: 65÷18.000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
Input signal: screw terminal
PHYSICAL
Dimensions (WxHxD): 205x344x202mm
Weight: 3.80kg
