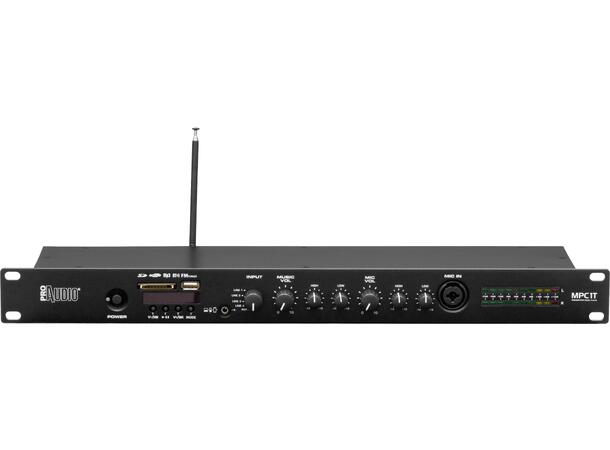

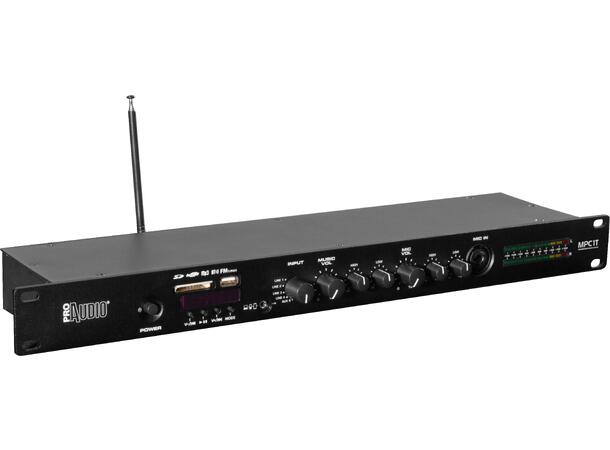

MPC1T is a preamplifier with MP3/FM tuner/Bluetooth media player.
Features:
Designed for permanent or mobile installations where easy control of music is important (eg. restaurants, gyms, stores).
The MPC1T offers /FM tuner, digital playback from SD cards or USB sticks.
MPC1T provides full MP3 playback control, a microphone input (XLR / 1/4 "combo), 5 line inputs (RCA / jack3.5), control the master volume, treble and bass.
Finally, 3 line output options (RCA / JACK / XLR) are available to allow connect the unit directly to powered speakers, an amplifier or mixer secondary.
PRE-AMPLIFIER
Type: Media player mixer with FM tuner
AUDIO SPECIFICATIONS
Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
THD+N: <0.1%
Input impedance: 10kO unbalance
Signal/Noise rate: >100dB
POWER SUPPLY STAGE
Type: Switching
Operating voltage/frequency: 230V (+/- 5%) 50Hz
FUNCTIONS
Media player: MP3/USB/SD/FM tuner/Bluetooth
Tone controls input: mic/line 100 Hz, 10kHz (±12dB)
Input volume control: mic, line1/2/3/4/aux
Output volume control: output master

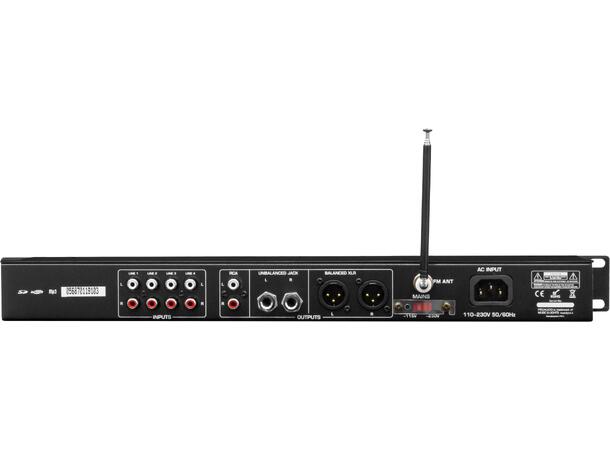

INPUT/OUTPUT CONNECTORS
Input signal: XLR combo (mic), pin RCA, Jack 3.5 mm
Output signal: XLR/Jack bal. pin RCA unbal.
Power connection: VDE
PHYSICAL
Dimensions (WxHxD): 485x44x130mm
Rack unit: 1
Weight: 1.7kg
