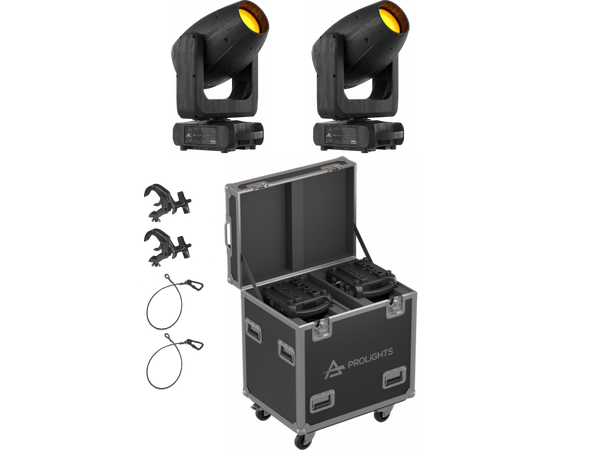

Pakken inneholder
2 x Astra Hybrid 420
1 x Flightcase til 2 x Astra Hybrid420
2 x C6016B Clamp
2 x Safe-35-50 Sikkerhetswire
The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
Features:
·Hybrid moving light equipped with a 420W USHIO NSL421 lamp
·Linear zoom ranging from 2.7° to 40°
·Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms
LIGHT SOURCE
·Source: 420W USHIO NSL421
·CCT: 7.000K
·Luminous flux: 35.815lm
·Lux: (2.7°) 99.284 lx - (40°) 281lx @15 m
·Source life expectancy: 6.000 h
OPTICS
·Zoom: 2.7° - 40° motorised linear zoom
·Lens diameter: 153mm
·Lens type: HD anti-reflection lenses with achromatic coating
·Focus: motorised
COLOUR SYSTEM
·Colour mixing: CMY colour system on 3 gradually fading colour wheels
·CCT: on wheel 2.500 K and 3.200 K + CTB
·Colour wheel: 15 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
·Animation wheel: animation wheel with CW and CCW rotation
·Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
·Gobo size: outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
·Fixed gobos: 18 fixed gobos + open
·FX generator: 2 prisms overlap for spectacular aerial effects
·Circular prism: 8 f and 4f with bi-directional rotation, indexing
·Frost: linear 0 - 100% frost filter
BODY
·Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
·Pan angle: 540°
·Tilt angle: 270°
·Pan/Tilt resolution: bit 8 / 16-bit
·Feedback: automatic repositioning after accidental movement
·Body: aluminium structure with high-resistance polycarbonate cover
·Body colour: RAL 9004
CONTROL
·Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
·DMX channels: 30channel
·Wireless Control: included, Lumen Radio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
·RDM: RDM for remote monitoring and settings
·Display: LCD high resolution colour display with autoflip
·Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOX2) not included
·Other: 16bit control of dimmer
ELECTRONICS
·Dimmer: linear 0 ~ 100% mechanical dimmer
·Strobe / shutter: 1 - 28 flash(s), mechanical
·Display battery: self-charging battery backup
·Operating temperature: -10° ~ +45°
ELECTRICAL
·Mains power supply: 100-240V - 50/60Hz
·Max power consumption: 590W
·Output (at 230V): 4 units on a single power line
·Power factor: > 0,96
PHYSICAL
·IP rating: 20
·Cooling: forced air with fan
·Suspension and fixing: any position with quick-lock omega brackets
·Pan / tilt lock: for transportation and maintenance
·Signal connection: Amphenol XLR 5p IN/OUT connectors
·Data connection: Neutrik Art-Net RJ45 IN/OUT
·Power connection: Neutrik powerCON TRUE1 IN connector
·Dimensions (WxHxD): 445x668x310mm
·Weight: 26,2kg
CERTIFICATIONS / APPROVALS
·Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
