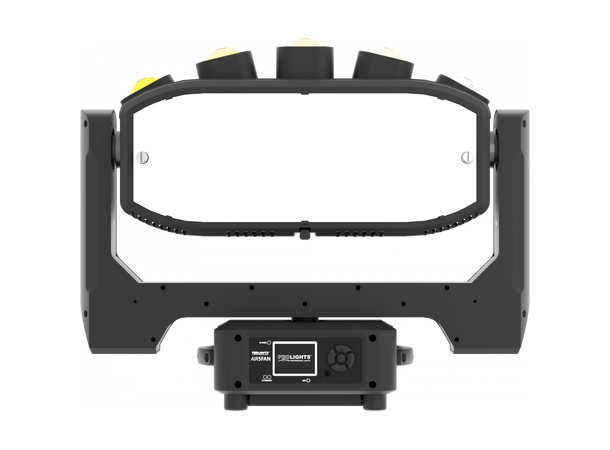

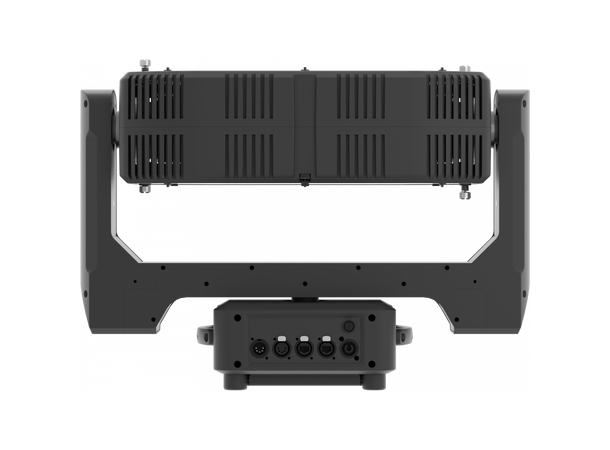

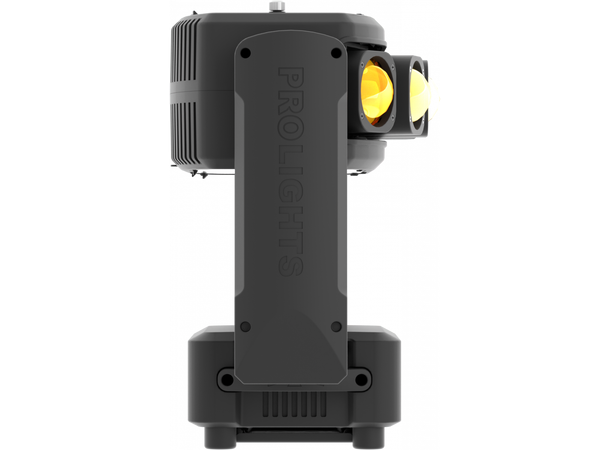

PROLIGHTS AIR5FAN Moving head

Beam, 5x40W RGBW/FC LEDs

Varenr: AIR5FAN-ML
20 657,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare
På lager hos leverandør, forventet leveringstid er ca. 19 dager
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

AIR5FAN is a pixel-FX moving head able to control the spread of its pixels through motorized lens system, passing from a sharp linear beam effect to a MultiRay. It empowers 5x40W RGBW/FC LED, with 2° beam each, delivering stunning brightness for big setups and featuring infinite rotation over Pan and Tilt. Last but not least, AIR5FAN allows to mount a mirror on its housing, featuring an added effect as moving projecting surface bouncing beams of other light sources.


Features:
5x40W RGBW Osram LED with 2° Beam angle
Motorized Pivot lenses from linear beam to MultiRay effect
Mountable mirror on the housing to features as moving mirror
Infinite Pan and Tilt rotation

LIGHT SOURCE
  • Source: 5x40W RGBW Osram Ostar LED
  • Lux: 27211lux @3m
  • Source Life Expectancy: >50.000 h
OPTICS
  • Beam Angle: 2°
  • Lens Diameter: 68mm
  • Lens Type: HQ glass lens optics
COLOR SYSTEM
  • Color Mixing: RGBW/FC
  • CTC: CTC control through independent DMX channel
  • White Presets: 2700-10000K
  • Color Wheel: Virtual color wheel with presets
DYNAMIC EFFECTS
  • Pixel Patterns: Preprogrammed dynamic and static patterns
  • FX Generator: Adjustable foreground/background color, index, speed, direction
  • Special Features: Head pivot control, mirror reflecting beams
BODY
  • Hardware On-board: Mountable mirror through quick-lock screws
  • Pan Angle: 540/630° with 360° continuous rotation
  • Tilt Angle: 360° with 360° continuous rotation
  • Pan/Tilt Resolution: 16bit
  • Feedback: Automatic repositioning after accidental movement
  • Body: Aluminium structure with hi-resistance polycarbonate cover
  • Body Color: Black
  • Other: Pivot angle: 0-28°
CONTROL
  • Protocols: DMX512, RDM, Art-Net
  • DMX Channels: 17/27/43ch
  • Pixel Control: Pixel2Pixel control
  • W-DMX: Optional, Wireless Solution receiver
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: LCD high resolution color display with autoflip
  • Firmware Upgrade: Yes, via USB-DMX interface (UPBOX2) not included
  • Hibernation: Power Safe Mode when lost DMX
  • Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
  • Dimmer: Linear 0~100% electronic dimmer
  • Strobe/Shutter: 1-30 Hz, electronic
  • Battery Backup: Battery backup for user operation without connecting to the main power
  • Operating Temperature: -10° ~ +45°
  • Flicker: Flicker free operation
ELECTRICAL
  • Power Supply: 100-240V \u2013 50/60Hz
  • Power Consumption (at 230V): 208W
  • Power Consumption (at 120V): 218W
PHYSICAL
  • Cooling: Aluminium heat sink cooling system and low noise fan
  • Suspension And Fixing: Any position with "quick-lock" omega brackets
  • Pan/Tilt Lock: Pivot lock for trasportation and maintenance
  • Signal Connection: DMX 5p IN/OUT Amphenol, ARTNET IN/OUT
  • Power Connection: PowerCON TRUE1 in
  • IP: 20
  • Dimensions (WxHxD): 558x474x242mm
  • Weight: 16kg
