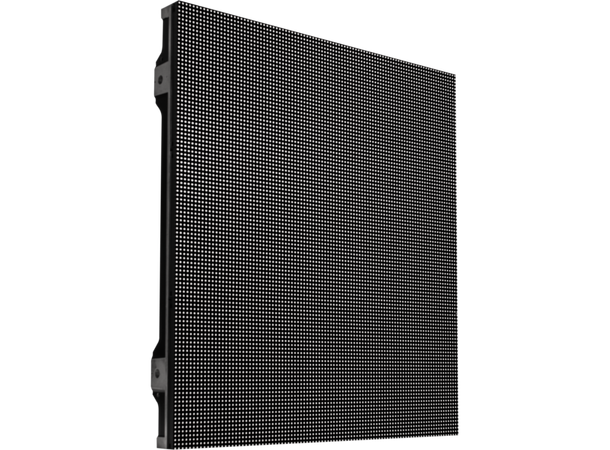

AlphaPIX6T is a LED module for the creation of ledscreens with 6,6 mm pixel pitch, ideal for video screening, pictures and backgrounds for medium viewing distances from ledwall surface.
The architecture of AlphaPIX6T is conceived with 640x720 mm module size, featuring 10368 SMD FullColor LEDs for an impressive light output (up to 5500 NIT, suitable for day-light environments).
The module design is completely made in aluminium and the IP65 protection rate on front side makes AlphaPIX6T suitable also for temporary outdoor application.
The main structure is designed in aluminum, making AlphaPIX6T extremely lightweight, only 54 kg/m2, allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.
Applications- In environments where the video-projection is not allowed by the high luminosity or short depth of the room
- In TV Studios for multiple viewing angle
- Touring and Live event for Camera streaming
- Large trade-show booths with creative video imaging
- In theme parks or public events

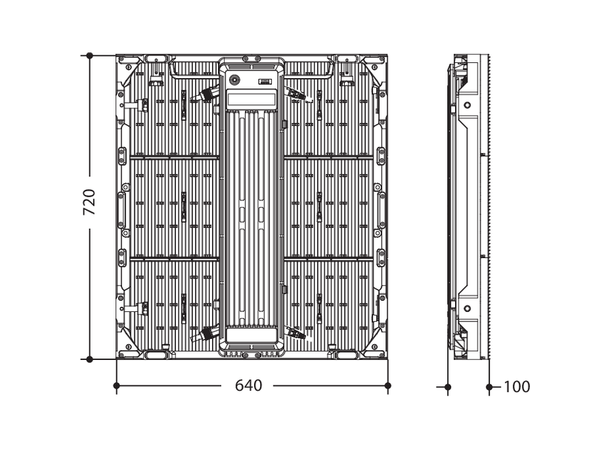

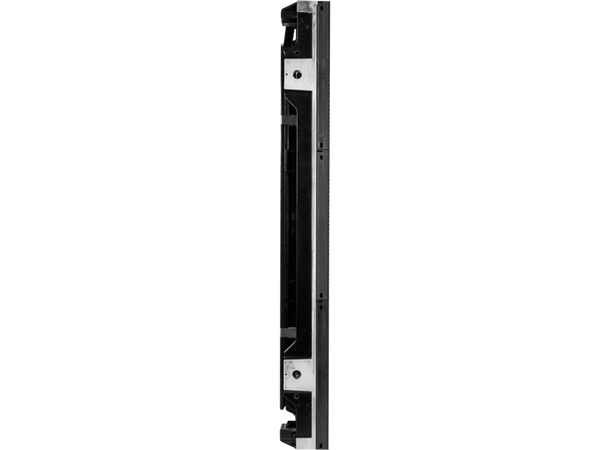

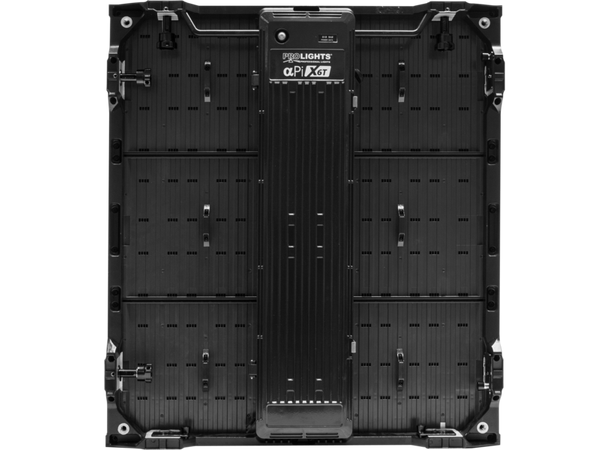

Mechanical architecture- Module dimensions (WxHxD): 640x720x100 mm
- Module weight: 13,5 kg
- Weight per square meter: 54 kg
- Internal protection: IP65/IP43
- Die-cast aluminium housing
- Mechanical finishing: black
- Seamless locking system
- Cooling: natural airflow
- Vertical hanging system: built-in aliscaf clamp support
Electrical features- Power supply: AC 110/230V 50/60Hz
- Power IN connections: Neutrik Powercon
- Max power consumption (module): 415W
- Average power consumption (module): 139W
- Max power consumption (per square meter): 300W
- Average power consumption (per square meter): 900W
- Power output: Max 3 modules
- MTBF: > 1.000 h
- Working temperature/humidity: -20°C - +60°C / 10% - 90%

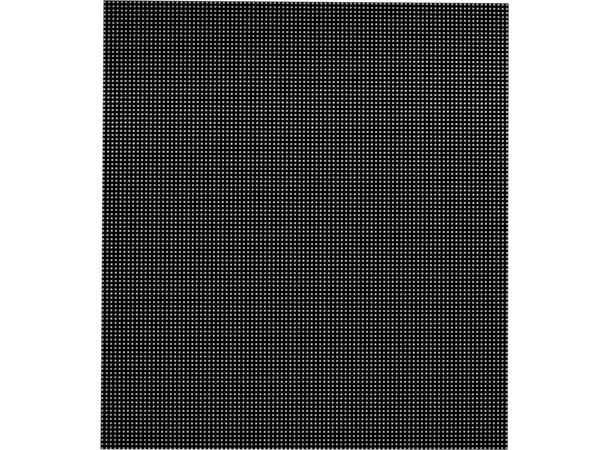

Video features- LED source: high-power SMD2727 FullColor black face
- Module resolution: 96x108 pixel, 10'368 total pixel
- Pixel pitch: 6,6 mm
- LED density: 22'500 LED/sqm
- Luminous flux: 5'500 cd/sqm (NIT)
- Best viewing distance: 8 - 100 m
- LED life span: >100'000h
- Colours: >4,4 trilioni through RGB mixing
- Grayscale: 16 bit (16'384 level)
- Refresh rate: = 1'920 Hz
- Colour calibration through PC software
- Input video signals: AV, S-Video, VGA, DVI, HDMI, SDI, DP
- Viewing angle: 140° horizontal, 70° vertical
- Dead pixel ratio: <0,002
Control system- Dedicated G2 NOVASTAR interface (Sender box) for video signal distribution and screen configuration
- Data IN sender box: USB connector
- Data IN module: RJ45 connectors
- Connection between screen and sender box: USB cable
- Connection between sender box and videowall: CAT5 data cable + Ethercon Neutrik connectors
| Product | IPIX6T |
| LED Type | High-power SMD2727 FullColor black face |
| Pixel Pitch | 6,6 mm |
| Pixel Density | 22'500 pixels/sqm |
| Viewing Angle | 140° H/70°V |
| Brightness | 5'500 nit |
| Drive Mode | 1/6 scan, constant current
|
| Color Depth | 8'192 bytes |
| Gray Level | 14 bit |
| Refresh Rate | = 1'920 Hz |
| Frame Rate | 60 fps |
| Brightness Adjustment | Manual/Auto/Programmable |
| Module size (WxH) | 320x240 mm |
| Panel Dimension (WxHxD) | 640x720x100 mm |
| Module Resolution | 48x36 pixels |
| Panel Resolution | 96x108 pixels |
| Panel Material | Die-casting aluminium |
| Panel Weight | 13,5 kg |
| Hanging Panel Quantity (V) | = 15 panels |
| Avg. Power Consumation | 300 W/sqm |
| Max Power Consumation | 900 W/sqm |
| Protection Grade | IP65/IP54 |
| Power Supply | AC 110/230V 50/60Hz |
| Power connector | Neutrik Powercon |
Input Video Signal
| AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| Control Protocol | Novastar |
| Operating Temp/Humidity | -20°C - +60°C / 10% - 90% |
| Life Time | > 100'000 hours |
| Compliant Standard | CE, MC, TUV |
