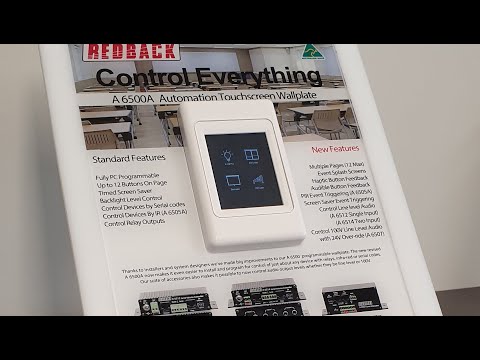

Representing hundreds of hours of research and development by Redback, this universal touch-screen wallplate is the perfect control system for commercial and domestic automation.
It’s stylish low pro?le design lends itself to installation in new modern homes, classrooms, lecture theatres or corporate boardrooms. The LCD panel can be con?gured from 1 to 12 buttons, which can be individually labelled. Con?guration is performed using the supplied software, which is then transferred to the plate via a Micro SD card. A library of button icons is included and can be customised by the user if required. Each button can be programmed for either serial (with hex code or ASCII commands), IR, or relay control, making it ideal for controlling just about any electronic device.
For IR applications the plate can learn and capture IR strings from almost any remote control. User generated macros can be created consisting of multiple commands in a single button press. This is ideal for performing multiple tasks at once ie: turn on projector, turn on ampli?er, turn off lights, drop down projector screen etc. Wall plate fits into a standard electrical wallbox for ease of installation.
The unit is supplied with a Micro USB to USB ‘A’ female lead for connection of USB keyboards and a 0.5m Cat6 UTP cable for testing purposes.
Features
User programmable buttons with customisable icons
Inbuilt icon library for commonly used buttons
Multi-command macros
IR learningn facility
SD card configuration upload
Dual cover wallplate to suit existing decor
Single U/UTP Cat5 cable connection
Haptic and audible feedback of button presses
Easy to program
10 Year Warranty (Cracked or broken screen excluded)
Australian Designed and Manufactured
Specifications
Input connection: Micro USB (USB Keyboard)
Output connection: RJ45 8P8C
Data transmission: cat5e cabling max 50m
Wallplate: Altronics Dual Cover
Dimensions: 2W x 116D x 13H
Power: Powered by A 6505A/10/15 over Cat5e cable
Current Draw: 50mA
Weight: 0.075kg
*Specifications are subject to change without notice.
