EIA-standard metal materials half - rack transmitter chassis.
All the receivers offer durable, ergonomic metal bodies, soft-touch controls.
UHF frequencies and Antenna Diversity reception for interference-resistant operation.
Bandwidth 16MHz, 32 pre-programmed frequencies available.
Selectable stereo or mono audio output.
High-visibility white LCD information display
PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
Designed for use on performance, broadcast, big meeting as side-ear systems for synchronous translation.

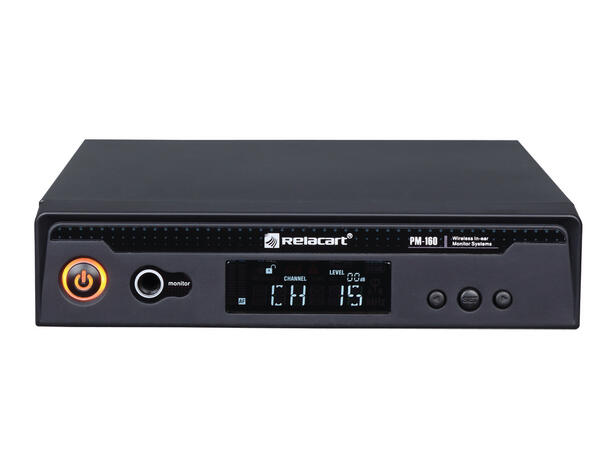

PM-160 Stereo Transmitter
Main Frame Size EIA STANDARD 1/2 U
Channels Single Channel
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range UHF 554-936 MHz
Modulation Mode FM stereo modulation
Output Power 50mW – 150mW
Operating Range100M typical ( in open space)
Oscillation PLL synthesized
Spurious Rejection <-60dBm
Maximum Deviation Range ±68KHz
Band Width 16MHz
S/N >97dB
T.H.D. <0.7% @ 1KHz
Frequency response 50Hz~15KHz±3dB
Audio Input Line level X 2,XLR and 6.3mmf compound jack
Audio Output 6.3mmf unbalanced jack X 2
Dimension (mm) 205(W) X 43(H) X 206(D)
Weight 1.0kg
