Carton size: 31x23x35 cm(2in1)
Unit weight: 4.5kgs(2in1)
Voltage: AC 110-120V/60Hz, AC 220-240V/ 50Hz
With high speed CPU memory do the mathematic operatation
LCD display.
DMX addresss can be set between 001-512.
With memory function .

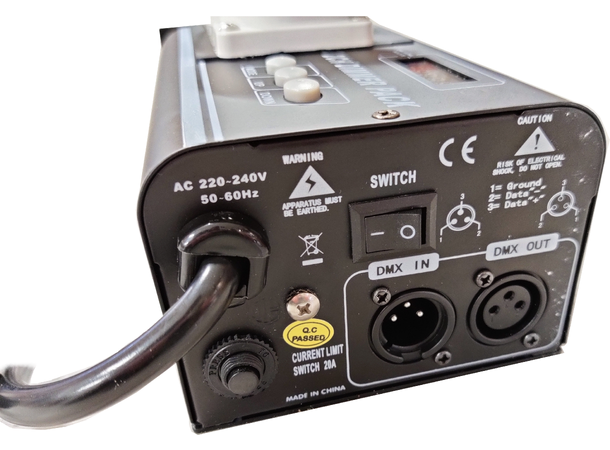

3 pin male XLR socket for DMX input .
Two control curves are available: SWITCH,LINER
Each channel independent and has linear dimming from
0-100%,with memory function
Power failure protection, phase correction ,
DMX signal parallel , use it alone
Rating current for every channel 10A-20A ,250V 5X20MM
