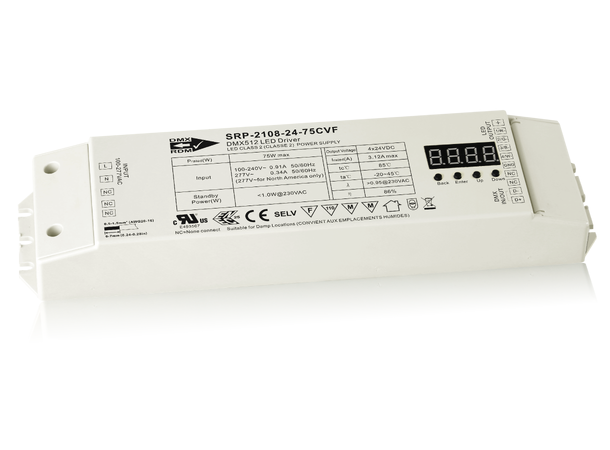

The dimmer with LED constant voltage drive can drive LED directly, has four channels, each channel is independent.
• Built-in DMX512 interface, support RDM bi-directional communication
• 100-277VAC wide input voltage
• 4 DMX512 Addresses, 4 Channels Output . DMX channel quantity from 1CH~4CH settable
• To control single color, dual color, RGB/RGBW LED lighting
• PWM output resolution ratio 8bit , 16bit settable.
• Output PWM frequency from 500HZ ~ 30K HZ settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• Compatible with universal DMX512 consoles
• Class ? power supply, full isolated plastic case
• High power factor and efficiency
• Galvanic isolation
• IP20 rating, suitable for indoor LED lighting applications
For øvrige tekniske spesifikasjoner se datablad under "Lenker & Dokumenter"
