SOMMER Cicada 4 Mikrofonkabel 4 x 0,14 mm², PUR Ø 3,40 mm, sort SOMMER Cicada 4 Mikrofonkabel 4 x 0,14 mm², PUR Ø 3,40 mm, sort

SOMMER Cicada 4 Mikrofonkabel

4 x 0,14 mm², PUR Ø 3,40 mm, sort

Varenr: 141357
Alt. varenr: 200-0461
23,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Maybe the smallest “star quad“ of all times …

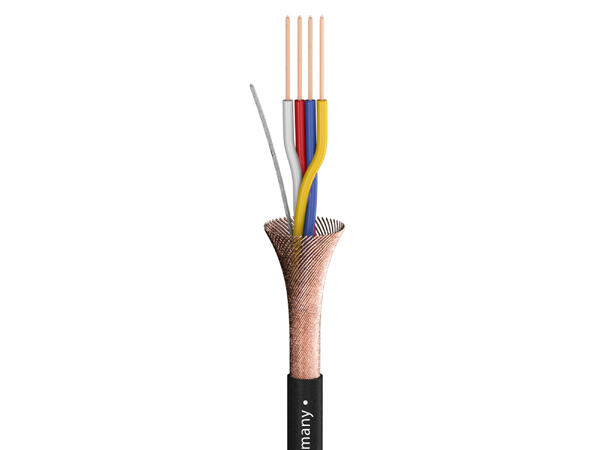

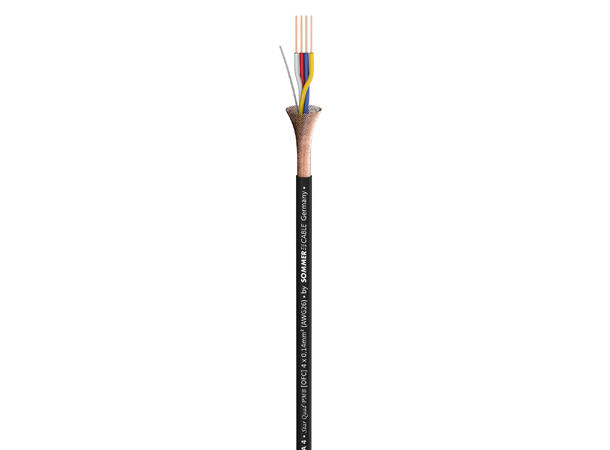

Is called SC-CICADA 4 with an outside diameter of merely 3.4mm (0.13 in.). Technically this cable is based on the very successful SC-CICADA SO-D14 variant, but instead of two, it has now four wires arranged in a star shape, yet remains just as flexible and top-performing. In a crossover wiring this version delivers extremely good electrical values, especially when compared to traditional microphone cables. Like the SC-CICADA SOD-14, the SC-CICADA 4 also features a robust, notch-resistant and sweat absorbing PUR Master Blend outerjacket – ideal for wiring up fitness gyms -, a tight spiral shielding with 95 % coverage and also a pre-stranded drain wire which makes cable assembly a lot easier and gives the cable an additional kink protection and a high tensile strength. The SC-CICADA 4 is the perfect microphone cable for use with mini XLR plugs, for fully assigned MIDI and DIN cables or as a compact patch cable. It is recommended e.g. for the internal wiring in racks or audio components, as feed line for clip or ear microphones or also for manufacturing high-grade adapter cables.


Advantages:

  • Super flexible due to fine CU litz construction
  • Easy to handle owing to the extra drain wire (0.22 mm²)
  • Tight spiral screen with 95 % coverage for excellent shielding
  • Durable and notch-resistant due to the sturdy PUR jacket

Application:

  • Interior wiring of mixing consoles, racks, and other audio
    components
  • For connecting mini XLRs, mini jacks, fully assigned MIDI and DIN cables
  • Flexible cable for clip-on microphones, earphones, speaker units, etc.
  • Assembly of adapter cable


Specifications:

Article number200-0461
NameSC-CICADA 4
EAN4049371360630
PropertiesAnalog
PropertiesOFC oxygen free copper
PropertiesPUR Master Blend
Application areaInstallation
Application areaMobile outdoor / indoor
ApplicationPatch & Microphone Cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical
Construction(4LI2Y0,14mm²)D11Y
Jacket materialPUR Master-Blend
Jacket Ø mm3,40
Inner conductor (audio)4
Inner conductor (audio) mm²0,14
Inner conductor Ø (audio) mm0,42
AWG (audio)26
ShieldingCopper spiral shielding + filler strand, tin-plated (0.22 mm²)
Copper strands (audio)18
Copper strand Ø (audio) mm0,10
Conductor insulation materialPE
Wire insulation material (audio)PE
Conductor insulation Ø mm0,90
Conductor insulation Ø (audio) mm0,90
Weight per 1 m g20
UV-resistantyes
Fire load per m kWh0,08
Style variantround
Packing100 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm3,4
Height mm3,4
Capac. cond./cond. per 1 m (audio) pF75
Capacity wire/wire at 1 ft. (audio) pF22,86
Capac. cond./shield. per 1 m (audio) pF140
Capacity wire/electic screen at 1 ft. (audio) pF42,672
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O145
Conductor resistance per 1000 ft. O44,196
Conductor resistance per 1 km (audio) O145
Conductor resistance per 1000 ft. (audio) O44,196
Shield. resistance per 1 km O39
Shield. resistance per 1000 ft. O11,8872
Old article number999-0001-329
