SOMMER Monocat Power 212 Hybridkabel pwr: 3x2,50 mm², 2xCAT.7, DMX: 2x0,25mm² SOMMER Monocat Power 212 Hybridkabel pwr: 3x2,50 mm², 2xCAT.7, DMX: 2x0,25mm² SOMMER Monocat Power 212 Hybridkabel pwr: 3x2,50 mm², 2xCAT.7, DMX: 2x0,25mm²

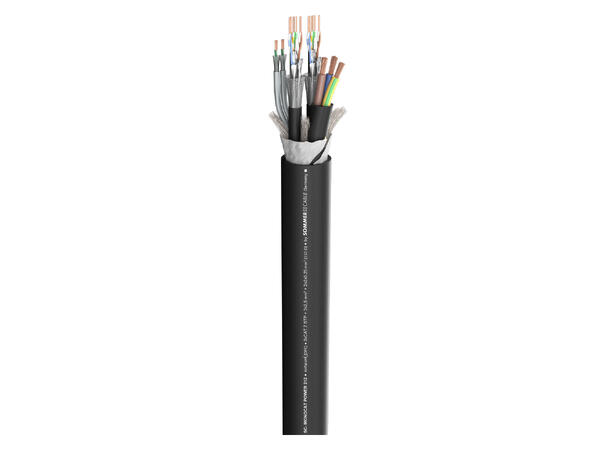

SOMMER Monocat Power 212 Hybridkabel

pwr: 3x2,50 mm², 2xCAT.7, DMX: 2x0,25mm²

Varenr: 141381
Alt. varenr: 501-0191-2
434,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Cable abuse without punishment...

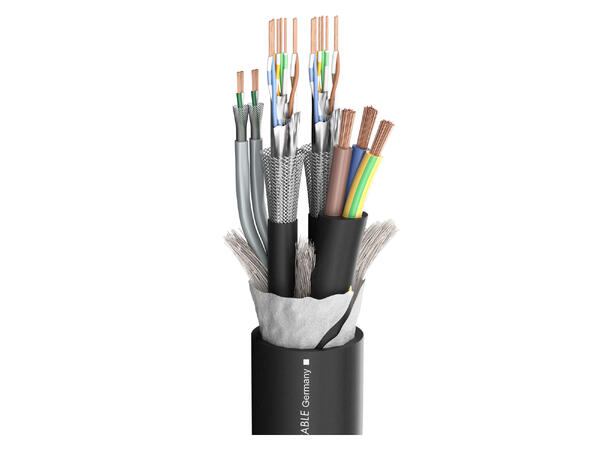

This combi line contains two CAT-cables in combination with two DMX-cables and insulated power cable. It s is equally suitable for permanent installations and mobile applications.


Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line

Application:

  • Control of DMX lighting consoles
  • Mobile applications
  • Analogue + digital audio multipair with LAN and power supply
  • Permanent Installation


Specifications:

Article number501-0191-2
NameSC-Monocat Power 212
EAN4049371258364
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Applicationhybrid cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

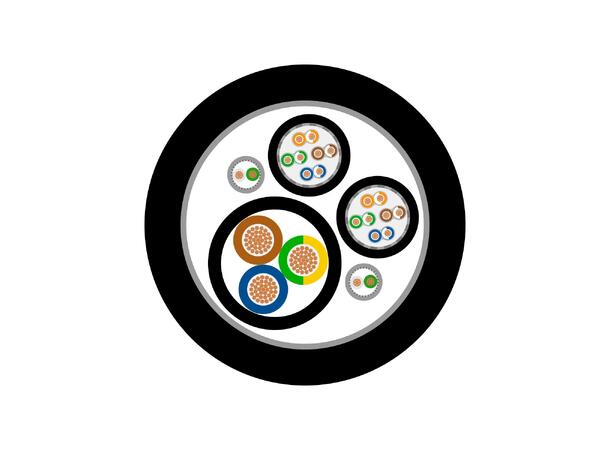

Construction(3LI(9)Y3x2,5mm²)(11)Y+2x(4x(2LI2Yx0,57mm))(ST)CY+2x(2LI2Y0,25mm²)DYY
Construction (power)(3LI(9)Y3x2,5mm²)(11)Y
Construction (AES/EBU, DMX)2x(2LI2Y0,25mm²)DY
Construction (network)2x(4x(2x0,57mm))(ST)CY
Jacket materialPUR-FRNC
Jacket Ø mm21,80
Number of Channels (power)1
Number of Channels (AES/EBU, DMX)2
Number of Channels (network)2
Inner conductor (power)3
Inner conductor (AES/EBU, DMX)2
Inner conductor (network)8
Inner conductor (power) mm²2,50
Inner conductor (AES/EBU, DMX) mm²0,25
Inner conductor Ø (network) mm0,57
AWG (AES/EBU, DMX)23
Shielding (AES/EBU, DMX)Copper spiral, tin-plated
Shielding (network)AL / PT-foil + Copper braiding tin-plated
Shielding factor %100
Conductor insulation materialFoam / Skin-PE
Weight per 1 m g450
UV-resistantyes
Fire load per m kWh2,38
Style variantround
Packingbulk stock
CAT-TypeCAT.7
Max. section length m110
Temperature min. °C-40
Temperature max. °C80
Width mm21,8
Height mm21,8
Capacity wire/wire at 1m (network) pF44
Capacity wire/wire at 1 ft. (network) pF13,4112
Impedance (network) O100
Insulation resist. per 1 km GO0
Insulation resist. per 1000 feet GO0
Insulation resist. per 1km (power) GO5
Insulation resist. per 1000 feet (power) GO1,524
Test voltage V2000
Nominal voltage (power) V500
Operating voltage (power) V300
BPVo-EuroclassFca
