SOMMER Monolith 1 compact Hybridkabel

pwr: 3x 1,50 mm², DMX: 2x 0,14 mm²

Varenr: 141382

Alt. varenr: 502-0051-1

106,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

150 på lager i Oslo

Beskrivelse

When the lights begin to dance...

the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.

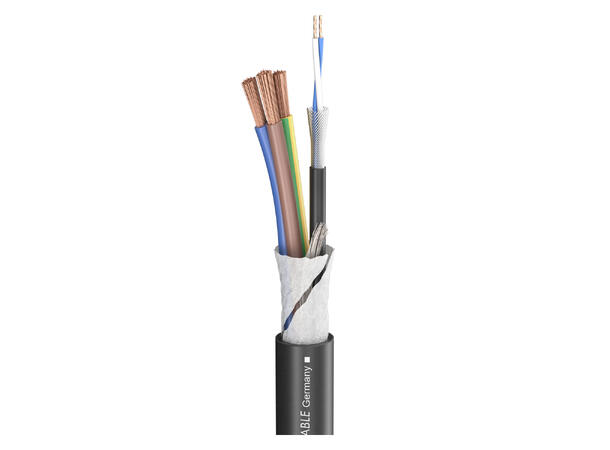

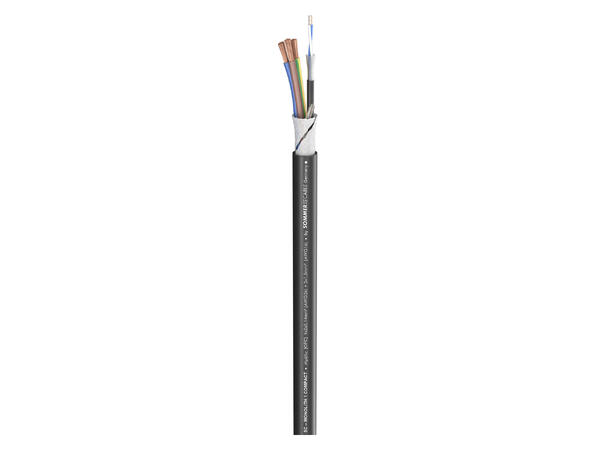

The SC-Monolith 1 compact POWER/DMX consists of a 3 x 1,50 mm² power cable and one DMX 512 line. Each DMX wire pair is shielded by a tinned helical copper mesh.

Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.

Advantages:

Parallel control for lighting boards through one cable via power line and DMX signal
Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding

Application:

Control line for DMX lighting consoles (wave impedance of )
Analogue + digital audio multipair with power supply

Specifications:

Article number	502-0051-1
Name	SC-Monolith 1 compact
EAN	4049371005456
Properties	Digital 110 O AES / EBU
Properties	OFC oxygen free copper
Properties	Analog
Application area	Stage / live
Application area	Installation
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application	DMX & Power
Colour	black
Colour detailed	black
Signal transmission	symmetrical
Construction	(3LIY1,5mm²)Y+ 01(2LI2Y0,14mm²)DYVLY
Construction (power)	(3LIY1,5mm²)Y
Construction (AES/EBU, DMX)	01(2LI2Y0,14mm²)DY
Jacket material	PVC
Jacket Ø mm	9,50
Jacket Ø (power) mm	0,00
Jacket Ø (AES/EBU, DMX) mm	3,00
Number of Channels (power)	1
Number of Channels (AES/EBU, DMX)	1
Inner conductor (power)	3
Inner conductor (AES/EBU, DMX)	2
Inner conductor (power) mm²	1,50
Inner conductor (AES/EBU, DMX) mm²	0,14
Inner conductor Ø (power) mm	1,38
AWG (power)	15
AWG (AES/EBU, DMX)	25
Shielding (audio)	Copper spiral, tin-plated
Shielding (AES/EBU, DMX)	Copper spiral, tin-plated
Shielding factor %	90
Copper strands (power)	28
Copper strands (AES/EBU, DMX)	36
Copper strand Ø (power) mm	0,25
Copper strand Ø (AES/EBU, DMX) mm	0,07
Conductor insulation material (AES/EBU, DMX)	PVC
Conductor insulation Ø mm	0,00
Conductor insulation Ø (power) mm	2,80
Conductor insulation Ø (AES/EBU, DMX) mm	1,15
Weight per 1 m g	144
UV-resistant	yes
Fire load per m kWh	0,54
Style variant	round
Packing	bulk stock
Temperature min. °C	-30
Temperature max. °C	70
Width mm	9,5
Height mm	9,5
Capac. cond./cond. per 1 m (audio) pF	52
Capacity wire/wire at 1 ft. (audio) pF	15,8496
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF	52
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF	15,8496
Capac. cond./shield. per 1 m (audio) pF	89
Capacity wire/electic screen at 1 ft. (audio) pF	27,1272
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF	89
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF	27,1272
Surge impedance (audio) O	110
Surge impedance (AES/EBU, DMX) O	110
Insulation resist. per 1 km GO	0
Insulation resist. per 1000 feet GO	0
Insulation resist. per 1 km (audio) GO	0,1
Insulation resist. per 1000 feet (audio) GO	0,0305
Insulation resist. per 1 km (AES/EBU, DMX) GO	0,1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO	0,0305
BPVo-Euroclass	Fca
