SOMMER Mercator CAT.7 FRNC, grå, Ø 6,50 mm SOMMER Mercator CAT.7 FRNC, grå, Ø 6,50 mm SOMMER Mercator CAT.7 FRNC, grå, Ø 6,50 mm

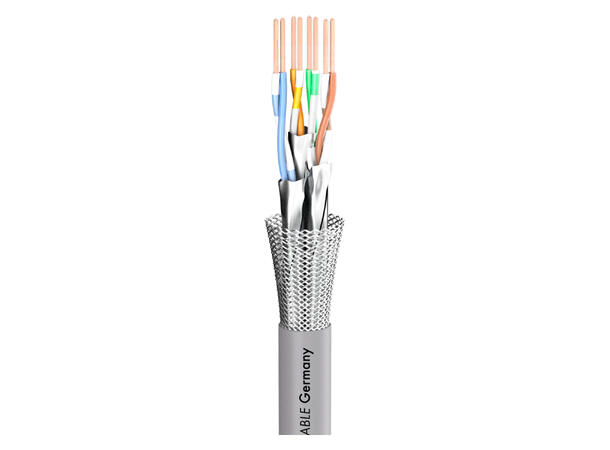

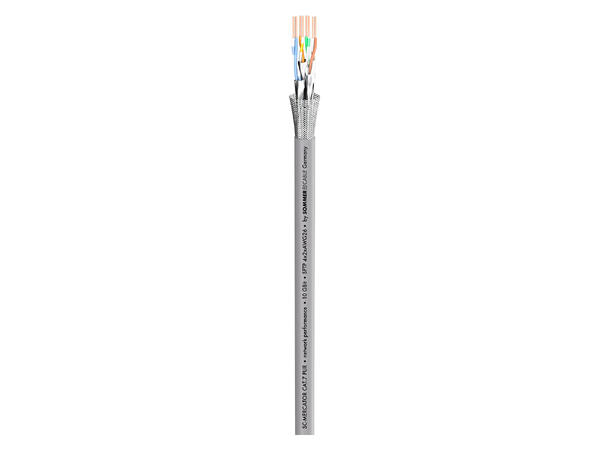

SOMMER Mercator CAT.7

FRNC, grå, Ø 6,50 mm

Varenr: 141415
Alt. varenr: 580-0306F
40,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

It‘s better to be on the safe side...

For computer cables are made in such huge quantities that often the quality suffers under the enormous price pressure. Bad transmission and cost-intensive, time-consuming troubleshooting are the consequences. We deliver a high-quality version with a short lay length and a durable FRNC jacket. Ideal for the installation for the transmission of high class-F bit rates, pursuant to the approbation (FAST ETHERNET, ATM155 Protocols, EN 50173 2ed, EN 50288-1, EN 50288-5-1, IEC 61156-5, ISO/ IEC 11801 2ed). It's downward compatible with all existing network protocols CAT.5, CAT.6, and CAT.6.A. The installation cable is also available as a duplex version with a braided shield. CAT.7a (1200 MHz) available on request.


Advantages:

  • Short twist pitch and high-quality insulation
  • Great durability due to special jacket compound
  • Length overprint on cable

Application:

  • Connection of computers and media technical equipment


Specifications:

Article number580-0306F
NameSC-Mercator CAT.7
EAN4049371002530
PropertiesHalogen-free / LSZH
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
PropertiesFRNC flame retardant
Application areaInstallation
Application areaStudio / Broadcast
ApplicationCat.7
Colourgrey
Colour detailedgrey

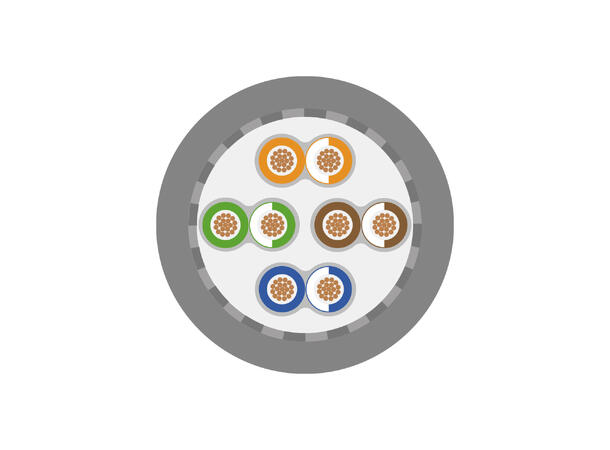

ConstructionJ02YSCH 4x2x0,14mm²
Construction (network)J02YSCH 4x2x0,14mm²
Jacket materialFRNC
Jacket Ø mm6,50
Number of Channels (network)1
Inner conductor (network)8
AWG (network)26
ShieldingAL / PT-foil +Copper braiding
Shielding (network)Copper braiding + AL / PT foil
Shielding factor %100
Copper strands (network)7
Copper strand Ø (network) mm0,16
Conductor insulation materialFoam / Skin-PE
Weight per 1 m g38,6
Fire load per m kWh0,15
Style variantround
Packing100 m spool
Packing500 m spool
CAT-TypeCAT.7
Max. section length m70
Temperature min. °C-20
Temperature max. °C70
Width mm6,5
Height mm6,5
Capacity wire/wire at 1m (network) pF43
Capacity wire/wire at 1 ft. (network) pF13,1064
Impedance O100
Loop resistance per km O290
Loop resistance per 1000 ft. O88,392
Max. delay (skew)20 ns @ 100 MHz
BPVo-EuroclassFca
