SOMMER Pegasus CMCK02 Multikabel

SPVC, sort | 4 x 0,20 mm², 2 par

Varenr: 141264
Alt. varenr: 100-0501-02
179,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Antall par
2
2
4
4
8
8
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Reaching for the stars...

this is what we did with this cable and created a high-end multipair which probably should be the best available on the market today. It is the multipair for the ambitious studio professional who dislikes to compromise on linearity and shielding. For the perfect sound the two opposite wires (“crossover“) are paired. That way we achieve an incredibly low capacitive value of approx. 37 pF wire/wire, and thus an almost loss-free transmission even with excess distances. When connected crosswise the SC-Pegasus CMCK is even digital-capable (AES/EBU 110 O)!

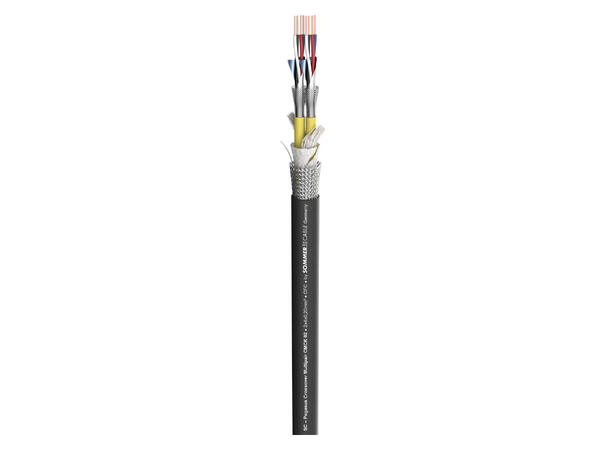

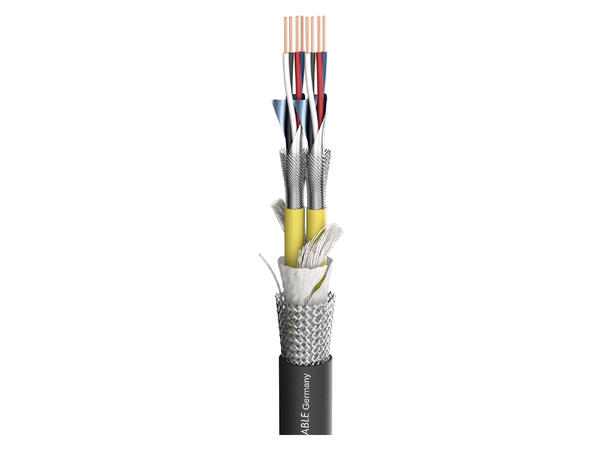

Our tight stranding technique, optimised for linearity and the fine 0,05 mm OFC copper litz wires ensure a homogenous, pure sound image, high bending cycles and a long life. The SC-Pegasus CMCK has a shielding that goes far beyond the demands normally put on a high-end multipair. It was equipped with an overall screen plus an
individual screen per channel, each with 100 % optical coverage. The overall
screen is made of a Cu cross mesh and the channel screens of a helical copper
mesh with an additional conductive AL foil. Thus the SC-Pegasus CMCK is not only
protected against external interferences, but the wire pairs are also perfectly
separated and shielded against each other. With the SC-Pegasus CMCK you are purchasing the state-of-the-art on the cable market for years to come, and you can be sure that from now on you will only have to take care of your music and your mix.


Advantages:

  • Homogenous, linear sound image
  • Low-loss transmission and perfect shielding
  • Absolutely superb technical and electrical data
  • Digital-capable (with crossover connection!)

Application:

  • Ultimate studio reference
  • High-quality permanent installation
  • Construction of high-end stagebox systems


Specifications:

Article number100-0501-02
NameSC-Pegasus CMCK02
EAN4049371006552

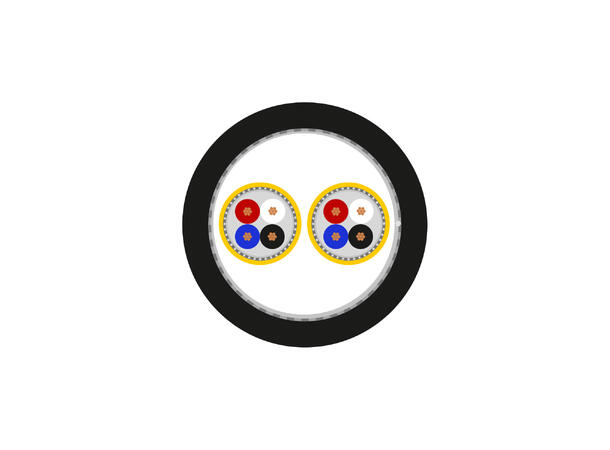

Construction02(4LI2Y0,20mm²)(ST)DYCY
Jacket Ø mm13,50
Number of Channels (audio)2
Weight per 1 m g194
Fire load per m kWh0,72
Width mm13,5
Height mm13,5
Article number100-0501
NameSC-Pegasus CMCK
PropertiesOFC oxygen free copper
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
ApplicationMultipair
Colourblack
Colour detailedblack
Signal transmissionsymmetrical
Jacket materialS-PVC
Number of Channels (audio)8
Number of Channels (audio)2
Number of Channels (audio)4
Inner conductor (audio)4
Inner conductor (audio) mm²0,20
Inner conductor Ø (audio) mm0,50
AWG (audio)24
ShieldingCopper braiding tin-plated
Shielding factor %100
Copper strands (audio)102
Copper strand Ø (audio) mm0,05
Conductor insulation materialFoam / Skin-PE
UV-resistantyes
Style variantround
Packingbulk stock
Temperature min. °C-20
Temperature max. °C70
Capac. cond./cond. per 1 m (audio) pF37
Capacity wire/wire at 1 ft. (audio) pF11,2776
Capac. cond./shield. per 1 m (audio) pF76
Capacity wire/electic screen at 1 ft. (audio) pF23,1648
Impedance O110
Insulation resist. per 1 km GO0,02
Insulation resist. per 1000 feet GO0,0061
Insulation resist. per 1 km (audio) GO0,02
Insulation resist. per 1000 feet (audio) GO0,0061
Conductor resistance per 1 km O100
Conductor resistance per 1000 ft. O30,48
BPVo-EuroclassFca
