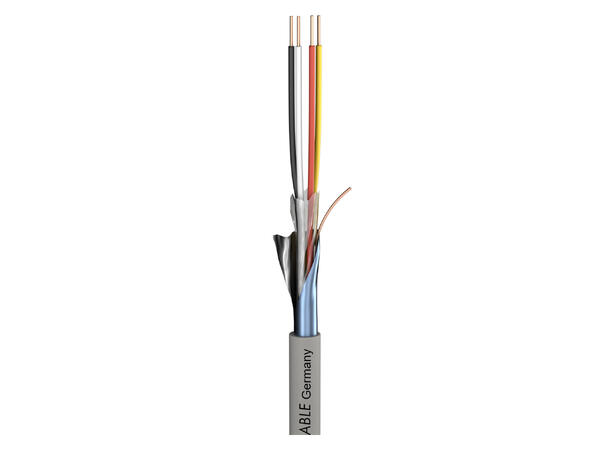

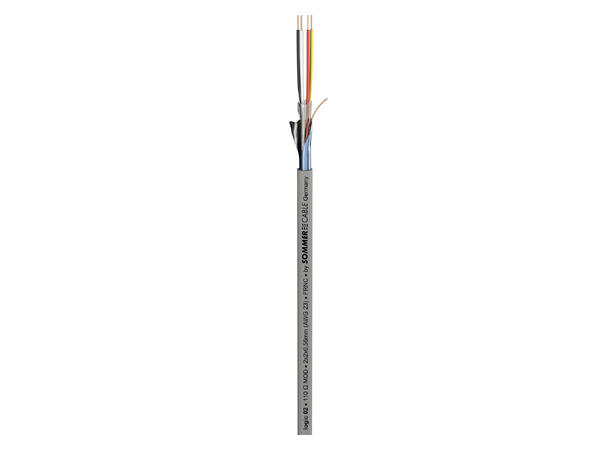

SOMMER Logicable LG MOD6LG02 Multikabel PVC, grå | 2 x 0,60 mm, 2 par SOMMER Logicable LG MOD6LG02 Multikabel PVC, grå | 2 x 0,60 mm, 2 par

SOMMER Logicable LG MOD6LG02 Multikabel

PVC, grå | 2 x 0,60 mm, 2 par

Varenr: 141267
Alt. varenr: 100-0616-02
9,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Antall par
2
3
4
6
8
10
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Good news...

or maybe not so good ones can be transmitted with our Logicable LG telecommunication cable. Perfect for branch and desktop stations or for control and measurement data signals. The installation can be done indoors in dry or wet areas or outdoors on exterior walls which are not exposed to direct sunlight.
The wires are colour-coded according to VDE 0815 and stranded as pairs which again are twisted into layers. Optimal protection against electrical interfering fields is provided by an AL/PT overall foil screen.
As to its diameter and material, the robust, flame-retardant PVC outer jacket complies with the DIN VDE 0207/5 and VDE 0815/Tab.19 guidelines. The Logicable LG conforms with the EU Low Voltage Directive
EWG93/68/ or EWG73/23.
Not suitable for high current applications and underground installation.


Advantages:

  • Available from 2- to 100-pair versions
  • Complies with the VDE 0815, VDE 0482-332-1-2/IEC 60332-1 standards and other requirments

Application:

  • Telecommunication installation cable for branch and desktop stations or for control and measurement data signals
  • for indoor and outdoor fixed installations


Specifications:

Article number100-0616-02
NameLogicable LG MOD6LG02
EAN4049371004206
ConstructionJ-Y(ST)Y Lg
Jacket Ø mm4,90
Number of Channels (audio)2
Inner conductor Ø (audio) mm0,60
Weight per 1 m g35
Fire load per m kWh0,17
Width mm4,9
Height mm4,9
Test voltage V800
Loop resistance per km O130
Loop resistance per 1000 ft. O39,624
Article number100-0616
NameLogicable LG
PropertiesAnalog
PropertiesOFC oxygen free copper
Application areaELA 100 V
Application areaInstallation
ApplicationTelecommunication cable
Colourgrey
Colour detailedgrey
Signal transmissionsymmetrical
Jacket materialPVC, flame-retardant
Jacket material (audio)PVC, flame-retardant and self-extinguishing according to VDE 0482-332-1-2 / IEC 60332-1
Inner conductor (audio)2
Inner conductor (audio) mm²0,28
Inner conductor Ø (audio) mm0,60
AWG (audio)23
ShieldingAL / PT foil + filler strand
Shielding factor %100
Conductor insulation materialPVC accord. to VDE 0207/4
Style variantround
Packingbulk stock
Temperature min. °C-30
Temperature max. °C70
Capac. cond./cond. per 1 m (audio) pF100
Capacity wire/wire at 1 ft. (audio) pF30,48
Capac. cond./shield. per 1 m (audio) pF300
Capacity wire/electic screen at 1 ft. (audio) pF91,44
Impedance O105
Insulation resist. per 1 km GO0,1
Insulation resist. per 1000 feet GO0,0305
Insulation resist. per 1 km (audio) GO0,1
Insulation resist. per 1000 feet (audio) GO0,0305
Test voltage V800
Loop resistance per km O130
Loop resistance per 1000 ft. O39,624
BPVo-EuroclassFca
