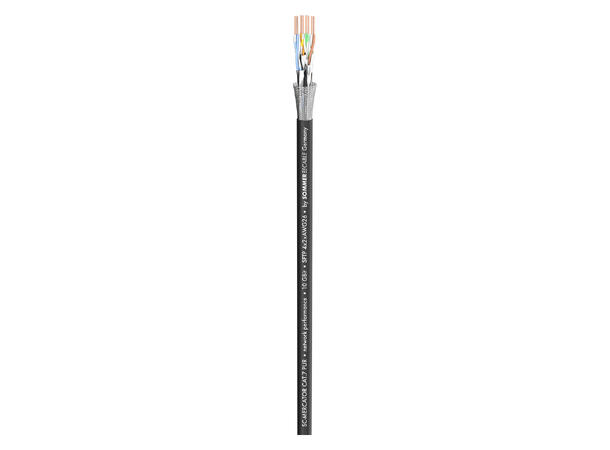

SOMMER Mercator CAT.7 PUR PUR, sort, Ø 6,50 mm

SOMMER Mercator CAT.7 PUR

PUR, sort, Ø 6,50 mm

Varenr: 141412

Alt. varenr: 581-0071

88,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Sort

Grå

Lilla

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100m
500m

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

CATlike agility and mobility...

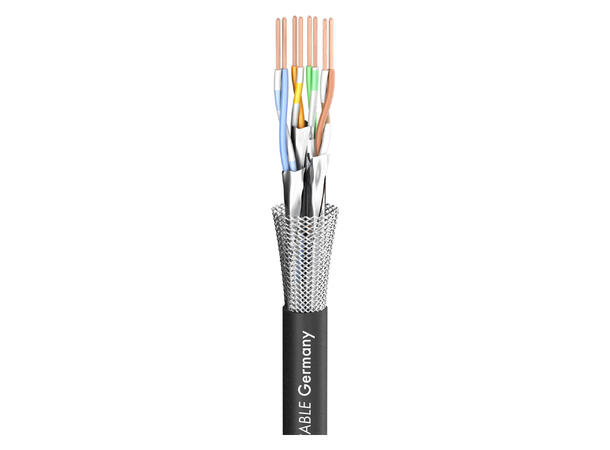

The SC-Mercator CAT.7 PUR is the perfect cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in OB vans. Ethersound signals can be transmitted easily over up to 75 m. Its halogen-free, flame-retardant PUR jacket (according to IEC60332.1) is extremely notch- and tread-resistant, cold-flexible and easy to reel. The wires are fitted with a foam-skin PE insulation and shielded in pairs with an AL-PT foil (PimF). The overall screen consists of Cu mesh plus fleece. This ensures optimal transmission properties over long distances.

Advantages:

Safe data transfer due to high-quality insulation and shielding
Great durability due to a special, extremely robust jacket compound
Outdoor temperature resistant, easy to reel

Application:

For mobile OB van use and outdoor applications
For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions

Specifications:

Article number	581-0071
Name	SC-Mercator CAT.7 PUR
EAN	4049371005470
Properties	PUR
Properties	FRNC flame retardant
Properties	Digital 110 O AES / EBU
Properties	Halogen-free / LSZH
Properties	OFC oxygen free copper
Application area	Installation
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application	Cat.7
Colour	black
Colour detailed	black

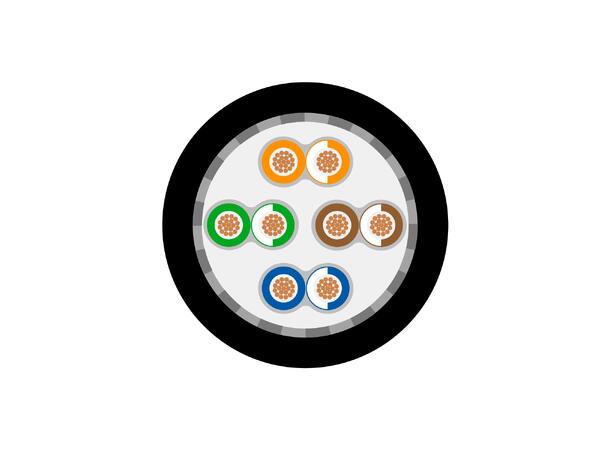

Construction	SFTP 4x2x0,14 mm²/600 MHz
Construction (network)	SFTP 4x2x0,14mm² / 600 MHz
Jacket material	PUR
Jacket Ø mm	6,50
Number of Channels (network)	1
Inner conductor (network)	8
Inner conductor (network) mm²	0,14
AWG (network)	26
Shielding	PimF, Copper braiding tin-plated
Shielding factor %	100
Copper strands (network)	7
Copper strand Ø (network) mm	0,16
Conductor insulation material	Foam / Skin-PE
Weight per 1 m g	40
UV-resistant	yes
Fire load per m kWh	0,19
Style variant	round
Packing	100 m spool
Packing	500 m spool
CAT-Type	CAT.7
Velocity factor	0,75
Temperature min. °C	-20
Temperature max. °C	60
Width mm	6,5
Height mm	6,5
Capacity wire/wire at 1m (network) pF	45
Capacity wire/wire at 1 ft. (network) pF	13,716
Impedance O	100
Insulation resist. per 1 km GO	2
Insulation resist. per 1000 feet GO	0,6096
Insulation resist. per 1 km (network) GO	2
Insulation resist. per 1000 feet (network) GO	0,6096
Loop resistance per km O	290
Loop resistance per 1000 ft. O	88,392
Max. delay (skew)	10 ns @ 100 MHz/100 m
BPVo-Euroclass	Fca
