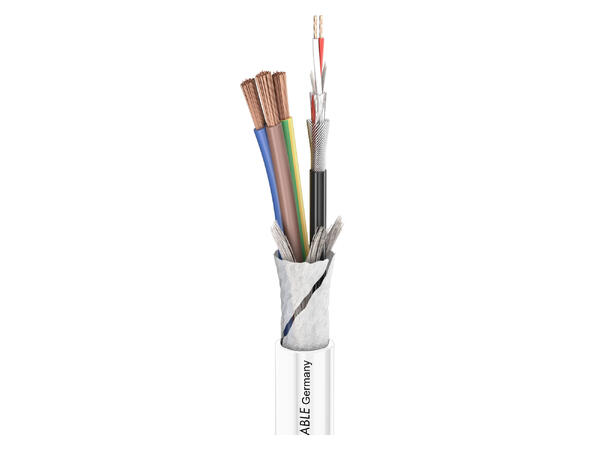

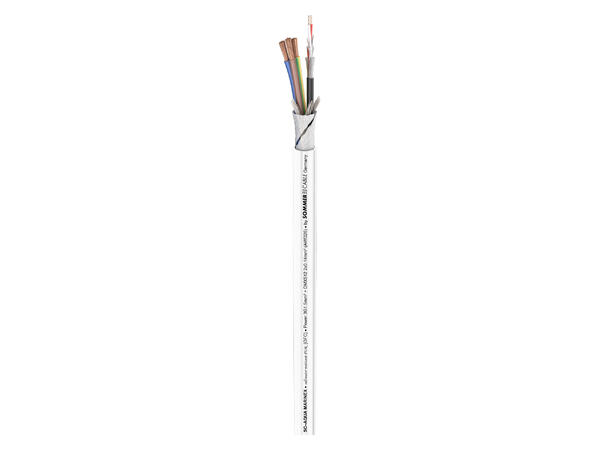

SOMMER 500-0240AQ DMX/Power Hybridkabel PUR-SR, Ø 9,40 mm SOMMER 500-0240AQ DMX/Power Hybridkabel PUR-SR, Ø 9,40 mm

SOMMER 500-0240AQ DMX/Power Hybridkabel

PUR-SR, Ø 9,40 mm

Varenr: 141569
Alt. varenr: 500-0240AQ
152,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Hvit
Hvit
Sort
Sort
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Water games …

captivate by light signals, programmed with audio synchronization in combination with controlled water fountains. The AQUA MARINEX POWER + DMX is perfectly designed for this purpose, offering 3x1.5mm² power lines and one shielded DMX 512 line which can also be used for digital AES/EBU or analog sound signal transmissions (microphones, active speaker systems etc.). Especially for the lighting control at long-term events in water or snow such as lake night festivals, winter games, Christmas markets, sports events, in theaters or for the demanding OB van technology, the robust AQUA MARINEX is the ideal connection. The special seawater resistant PUR jacket, the compact construction and the interior waterproof protective banding allow a permanent underwater installation down to 20 meters (65.6 ft.) deep.


Advantages:

  • Salt and fresh water resistant outer jacket in black and white (not chlorine resistant)
  • Power line and AES / EBU, DMX in a robust cable
  • Transversely watertight due to water-absorbing, pressure-compensating protective banding
  • Halogen-free, UV and microbe-resistant
  • Cold-flexible and reelable

Application:

  • Permanent installation in water depths up to 20 m
  • Demanding outdoor installation (e.g. with long-time events)
  • Installation and usage near the coast and in boat-building
  • In- and outdoor installation in leisure parks and water oases
  • Control of DMX-light mixing board incl. Power supply


Specifications:

Article number500-0240AQ
EAN4049371306621
BrandSommer cable
PropertiesUnderwater / submerged
PropertiesDigital 110 O AES / EBU
PropertiesPUR
PropertiesAnalog
PropertiesHalogen-free / LSZH
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaELA 100 V
Application areaInstallation
ApplicationDMX & Power
Colourwhite
Jacket materialPUR-SR
Jacket Ø mm9,40
Jacket Ø (AES/EBU, DMX) mm3,20
Inner conductor (AES/EBU, DMX)2
Inner conductor (AES/EBU, DMX) mm²0,14
AWG (AES/EBU, DMX)26
ShieldingCopper spiral + special protective bandage
Shielding factor %95
Copper strands (AES/EBU, DMX)36
Copper strand Ø (AES/EBU, DMX) mm0,07
Weight per 1 m g117
Fire load per m kWh0,58
Packingbulk stock
Temperature min. °C-40
Temperature max. °C80
Max. water depth m20
Max. water pressure bar2
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF54
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF16,4592
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF120
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF36,576
Surge impedance (AES/EBU, DMX) O110
Insulation resist. per 1 km (AES/EBU, DMX) GO1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO0,3048
Conductor resistance per 1 km (AES/EBU, DMX) O141
Conductor resistance per 1000 ft. (AES/EBU, DMX) O42,9768
Available sinceV07.0
BPVo-EuroclassFca
