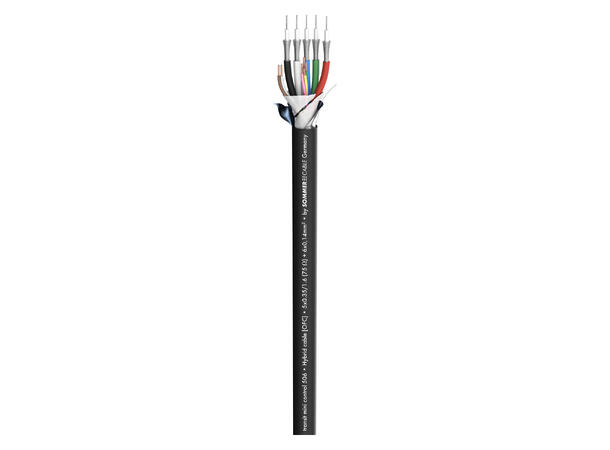

SOMMER Transit Mini Cont. 506 Videokabel

video/control, antistatic-PVC, sort

Varenr: 141738
Alt. varenr: 600-0261-0506
128,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ytterkappe, materiale
PVC (Antistatisk)
PVC (Antistatisk)
TPE (halogenfri)
TPE (halogenfri)
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

A whole lot for little money...

such is TRANSIT MINI FLEX‘s big brother. It‘s built almost the same way as the TRANSIT MINI FLEX 5, but with some important extra control lines. Therefore we recommend this cable for fitting VGA SUB-15HD and scart connectors.
By the way, quality-wise the Transit Mini Control 506 cannot be compared to cheap standard cables or Asian imports; here we are talking about a patch cable with a small diameter and very good electrical data.

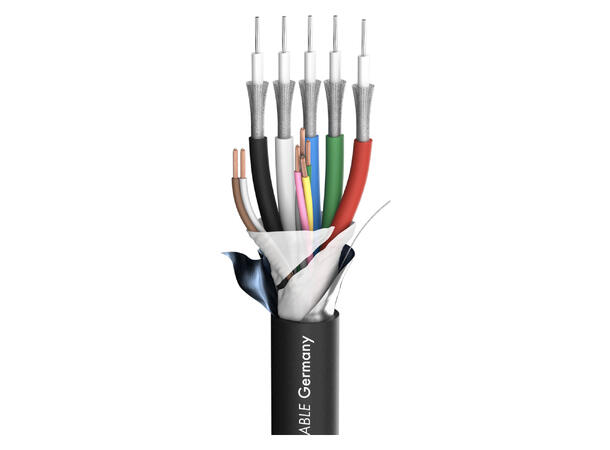

Wire colours according to RGB: red, green, blue, black, white.


Advantages:

  • Flexible, easy to reel and cold-resistant due to the special jacket compound
  • Additional control lines
  • Compact with a small outer diameter
  • Low damping values despite miniature construction

Application:

  • Highly flexible video, VGA monitor, SUB-D and scart cable for professional demands
  • For mobile applications and for the unobtrusive fixed installation


Specifications:

1
Article number600-0261-0506
NameTransit Mini Control 506
EAN4049371000574
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Applicationvideo cable
Colourblack
Colour detailedblack

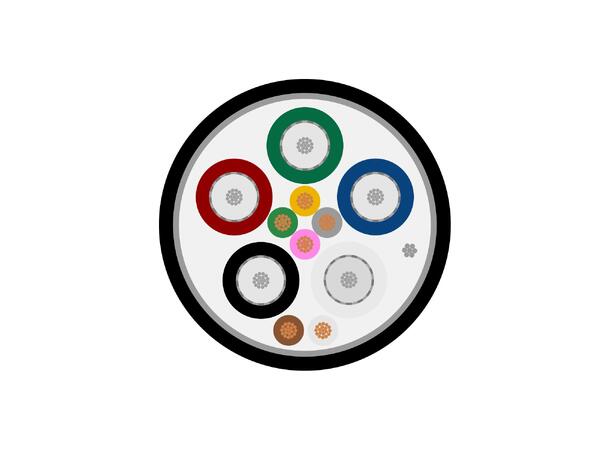

Construction(5LI2Y0,32mmCY)Y +6x0,14mm² ST-Y
Construction (video)(5LI2Y0,32mmCY)Y
Construction (control)6(2LI2Y0,14mm²)(ST)Y
Jacket materialAntistatic-PVC
Jacket Ø mm10,00
Number of Channels (video)1
Number of Channels (control)6
Inner conductor (video)5
Inner conductor (video) mm²0,08
Inner conductors (control) mm²0,14
Inner conductor Ø (video) mm0,32
Inner conductor Ø (control) mm0,42
AWG (video)28
AWG (control)25
ShieldingAL / PT foil
Shielding (video)Copper braiding tin-plated
Shielding factor %95
Copper strands (video)1
Copper strands (control)12
Copper strand Ø (video) mm0,32
Copper strand Ø (control) mm0,12
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,60
Weight per 1 m g124
UV-resistantyes
Fire load per m kWh0,39
Style variantround
Packingbulk stock
Velocity factor0,8
Temperature min. °C-25
Temperature max. °C70
Width mm10
Height mm10
Capacity wire/electic screen at 1m (video) pF56
Capacity wire/electic screen at 1 ft. (video) pF17,0688
Capacity wire/electic screen at 1m (control) pF56
Capacity wire/electic screen at 1 ft. (control) pF17,0688

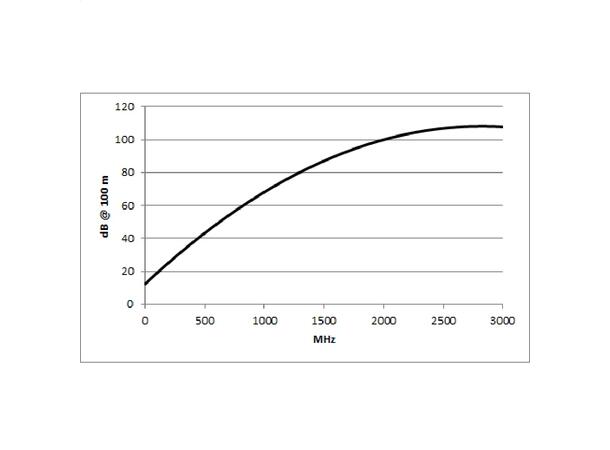

Damping at 50 MHz (100m & 20° C) dB14,2
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB4,3282
Damping at 100 MHz (100m & 20° C) dB20,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB6,157
Damping at 200 MHz (100m & 20° C) dB28,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB8,7782
Damping at 470 MHz (100m & 20° C) dB41,6
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB12,6797
Damping at 862 MHz (100m & 20° C) dB61,8
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB18,8366
Damping at 1000 MHz (100m & 20° C) dB70
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB21,336
Damping at 1485 MHz (100m & 20° C) dB86,4
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB26,3347
Damping at 1750 MHz (100m & 20° C) dB94,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB28,7122
Impedance O75
BPVo-EuroclassFca
