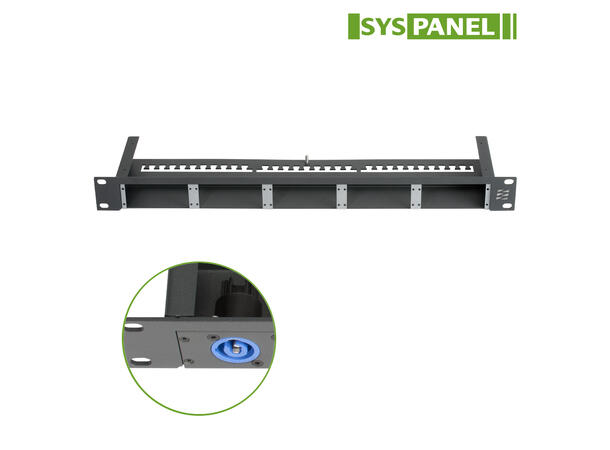

SYSPANEL SYSPAN5 Kabinett 140mm

The SYSPANEL5 allows the fast and easy construction of patch panels, device connection panels, connection distributors or transfer points, e.g. in control or equipment rooms.
The SYSPANEL5 can be fitted with up to 5 SYSBOXX front panels (1 width unit / WU), SYFB21-…) or 5 SYSBOXX docking modules (1 width unit / WU), SYC1-…), thus enabling the realization of modular 1 RU connection panels with a flush-mount module integration into the housing front.
As a strain relief for the feed lines, the case holds 28 metal tongues for attaching cable ties. The case earthing is provided by an M4 ground screw (PE).
The individual lettering can be done using our SYSBOXX labeling profile. Optionally the SYSPANEL can be closed from above with the cover (SYSPAN-C).
The labeling profile as well as the frontpanels/docking modules are fastened in a time-saving manner with self-tapping M2.5 Torx screws.
