Coaxcable Vector Plus 1.3/5.7, 90,00m
600-0131

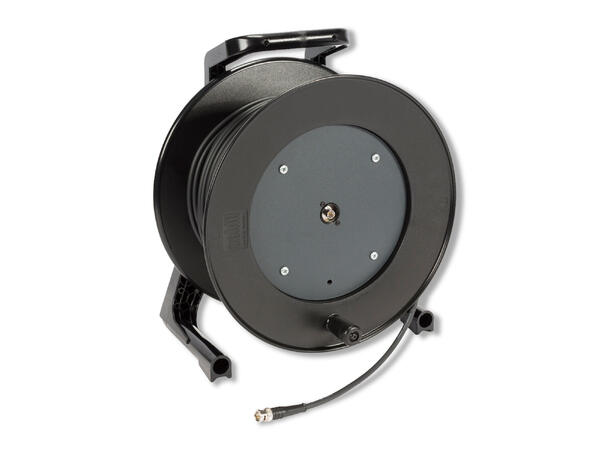

Cabledrum: GT310
---------------------------------------
Connector left side:
1x NBNC75BZV14X
Sleevecolor: black
Cableend on KOMB.RM
incl. 5cm unshrinked Heatshrink
---------------------------------------
Connector right side:
1x NBNC75BZV14X
Sleevecolor: black
incl. 5cm unshrinked Heatshrink
Specifications:
Article number 600-0131
Name SC-Vector Plus
EAN 4049371409742
Properties 3G-SDI
Properties Digital 75 O
Properties 6G-SDI
Properties SDI
Properties Analog
Properties OFC oxygen free copper
Application area Studio / Broadcast
Application area Installation
Application area ELA 100 V
Application area Mobile outdoor / indoor
Application video cable
Colour black
Colour detailed black
Jacket material PVC
Jacket Ø mm 8,10
Number of Channels (video) 1
Inner conductor (video) 1
Inner conductor Ø (video) mm 1,30
AWG (video) 16
Shielding AL foil + Cu mesh, tinned + 2nd AL foil
Shielding factor % 100
Conductor insulation material Foam / Skin-PE
Conductor insulation Ø mm 5,70
Weight per 1 m g 90
Style variant round
Packing bulk stock
Velocity factor 0,84
Temperature min. °C -10
Temperature max. °C 80
Width mm 8,1
Height mm 8,1
Capacity wire/electic screen at 1m (video) pF 53
Capacity wire/electic screen at 1 ft. (video) pF 16,1544
Damping at 5 MHz (100m & 20° C) dB 1,2
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB 0,3658
Damping at 50 MHz (100m & 20° C) dB 3,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB 1,0668
Damping at 100 MHz (100m & 20° C) dB 4,8
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB 1,463
Damping at 1000 MHz (100m & 20° C) dB 16,1
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB 4,9073
Damping at 1485 MHz (100m & 20° C) dB 20,1
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB 6,1265
Damping at 2150 MHz (100m & 20° C) dB 25,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB 7,7114
Damping at 3000 MHz (100m & 20° C) dB 29,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB 9,083
Damping at 6000 MHz (100m & 20° C) dB 42,7
Damping at 12000 MHz (100m & 20° C) dB 64,5
Impedance O 75
Conductor resistance per 1 km O 13
Conductor resistance per 1000 ft. O 3,9624
Shield. resistance per 1 km O 6,2
Shield. resistance per 1000 ft. O 1,8898
BPVo-Euroclass Eca
